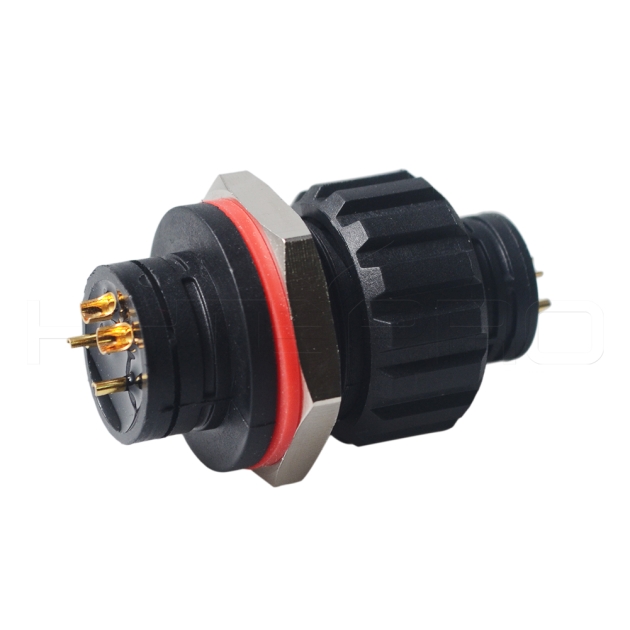

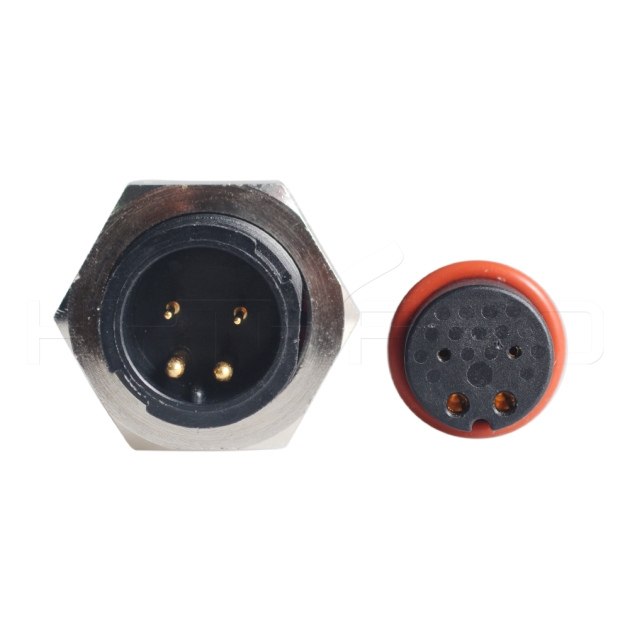

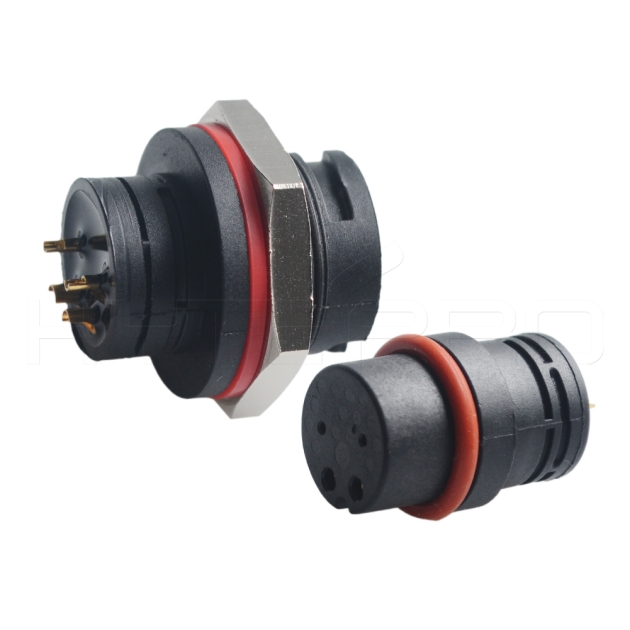

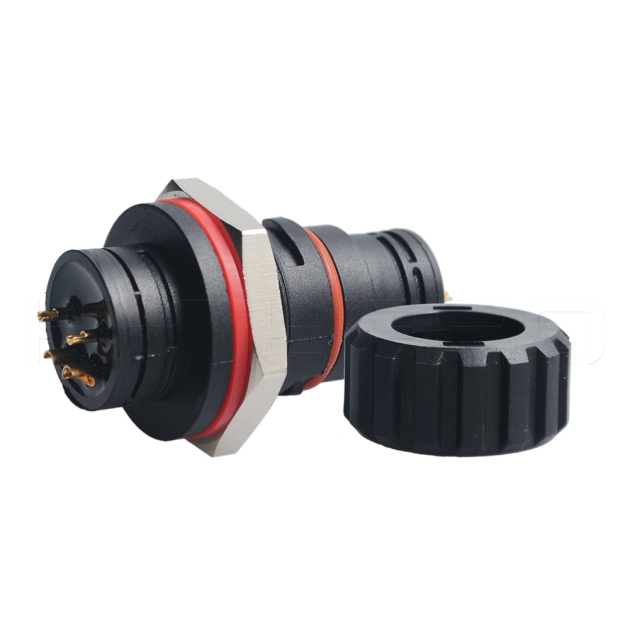

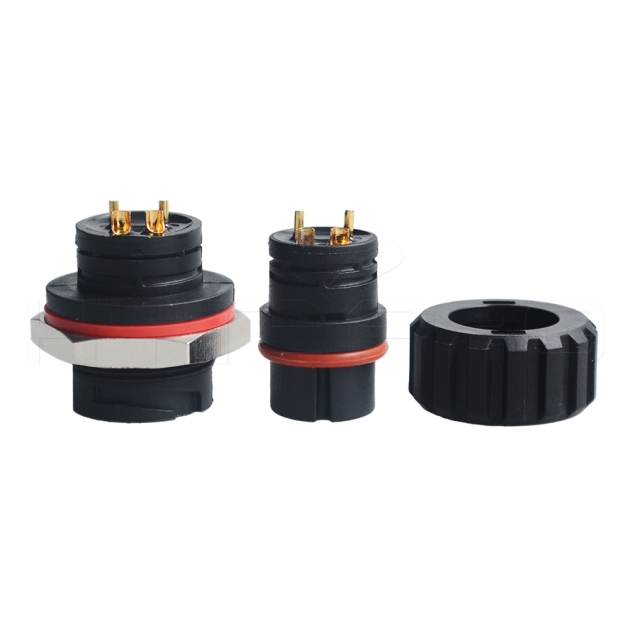

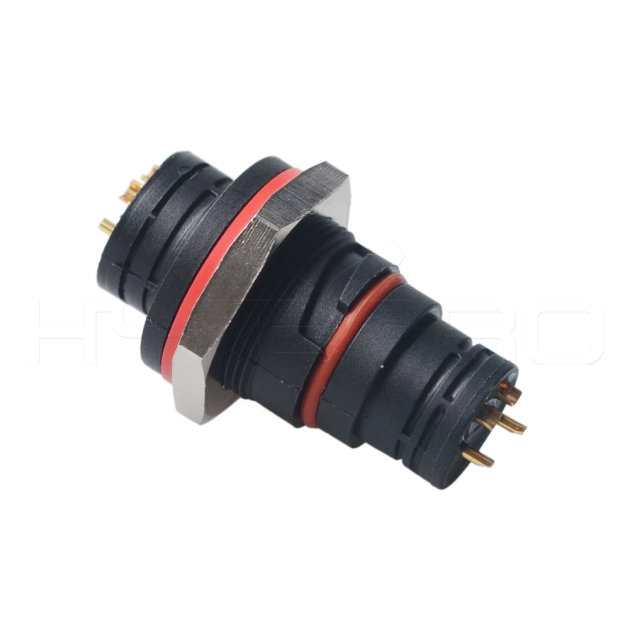

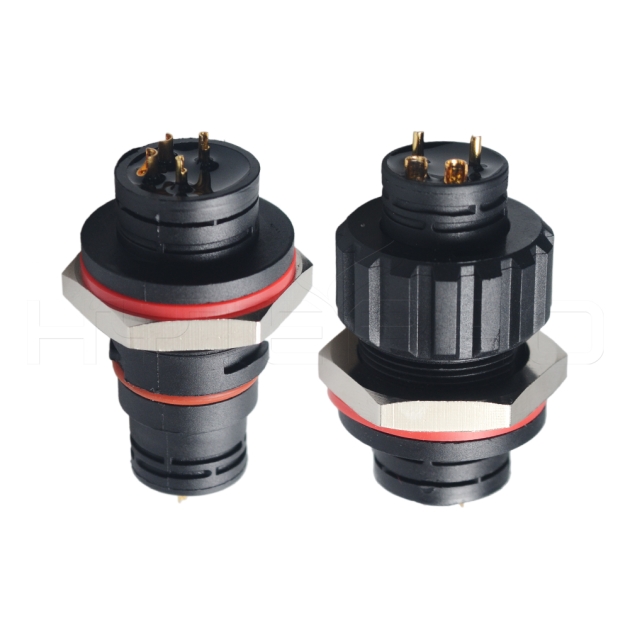

DC charging 4pin waterproof power connector ip67 EC-004
2019-04-16 09:46:06 129 5.0 /5Product Name：DC charging 4pin waterproof power connector ip67 EC-004Product ID：HTP-EC-004
- Trademark : HytePro®
- Part Number : HTP-EC-004
- Waterproof Rate : IP67~IP68(IEC-60529)
- PIN : 4
- Operating temperature : -40~+105℃
- Housing : Nylon
- Customizable : Yes
- Contactor : Copper with Gold plated
- Contact impedance : 30MΩ max.
- Insulation resistance : 2000MΩ/Min
- Assembly method : Screwfix,Welding,Overmolding
- Rated current : Small pin 2A, large pin 40A
- Type : Male for Board,Feamle for Wire
- RoHS : Compatible
