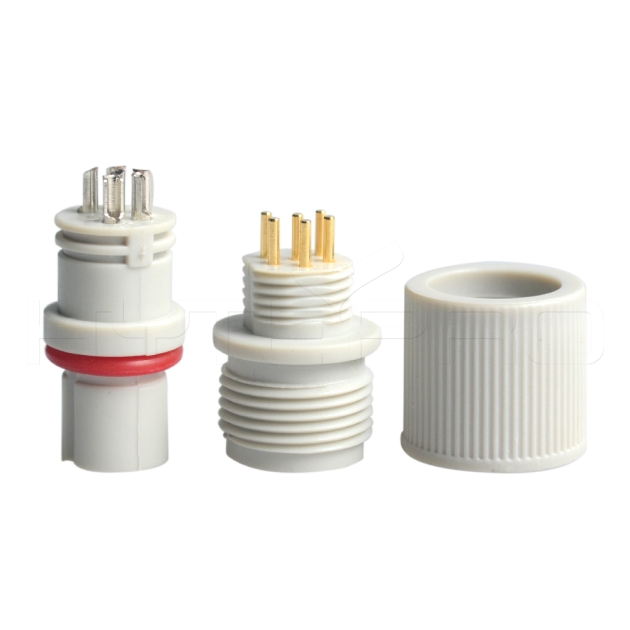

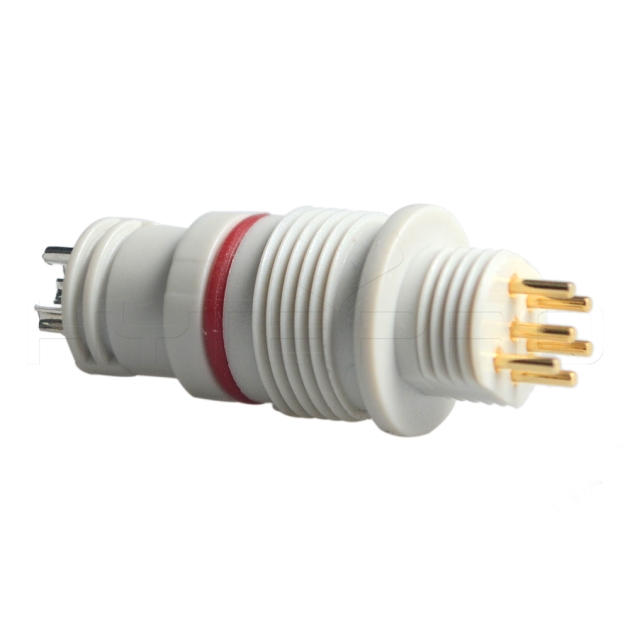

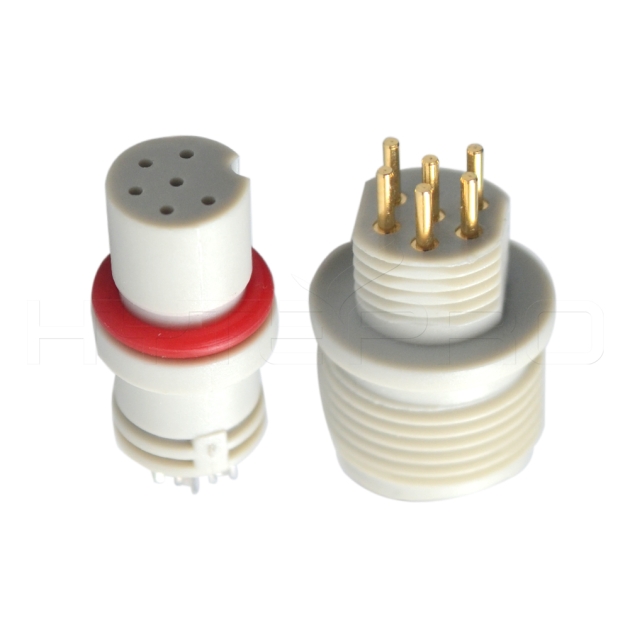

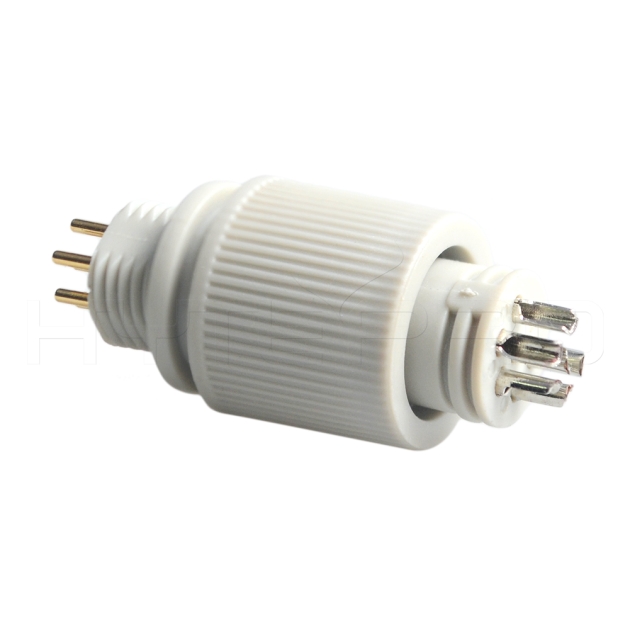

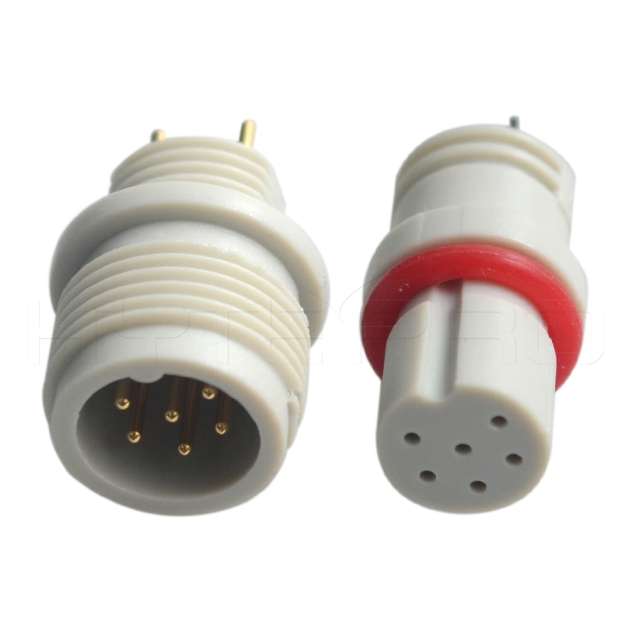

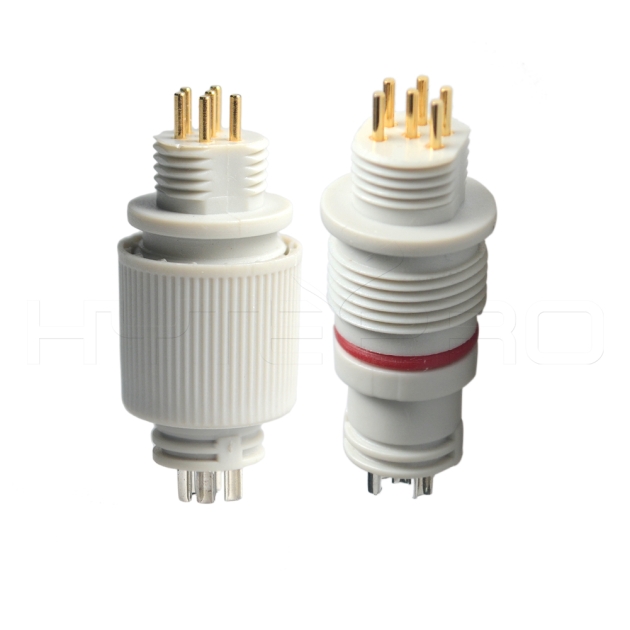

Product Name:White 6 pin dc waterproof connector EC-006Part Number:HTP-EC-006

  • Trademark : HytePro®
  • Part Number : HTP-EC-006
  • Waterproof Rate : IP67~IP68(IEC-60529)
  • PIN : 6
  • Operating temperature : -40~+105℃
  • Housing : Nylon
  • Customizable : Yes
  • Contactor : Copper with Gold plated
  • Contact impedance : 30MΩ max.
  • Insulation resistance : 2000MΩ/Min
  • Assembly method : Screwfix,Welding,Overmolding
  • Rated current : Small pin 2A, large pin 40A
  • Type : Male for Board,Feamle for Wire
  • RoHS : Compatible
