2019-09-16 11:53:04   358

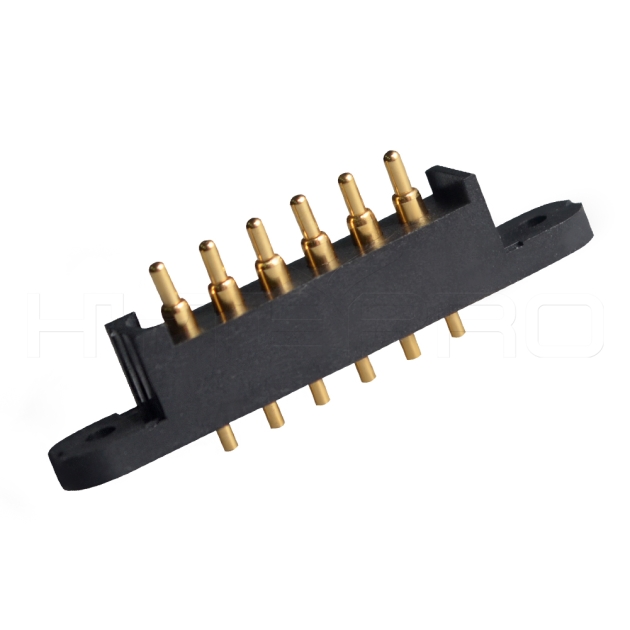

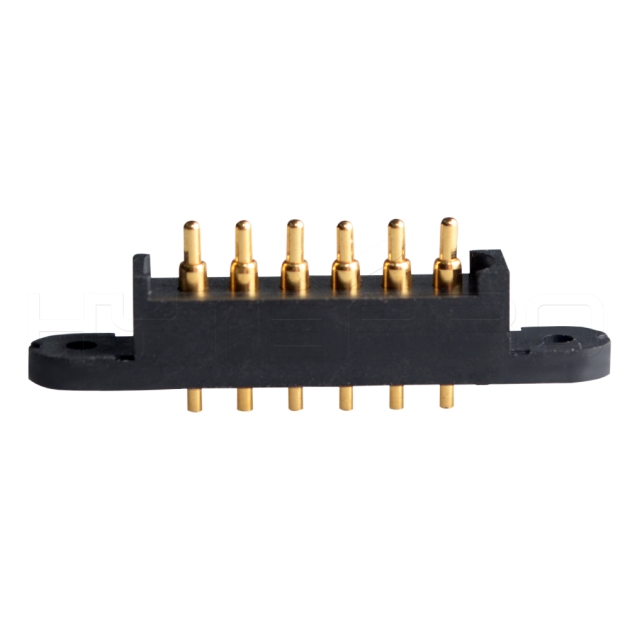

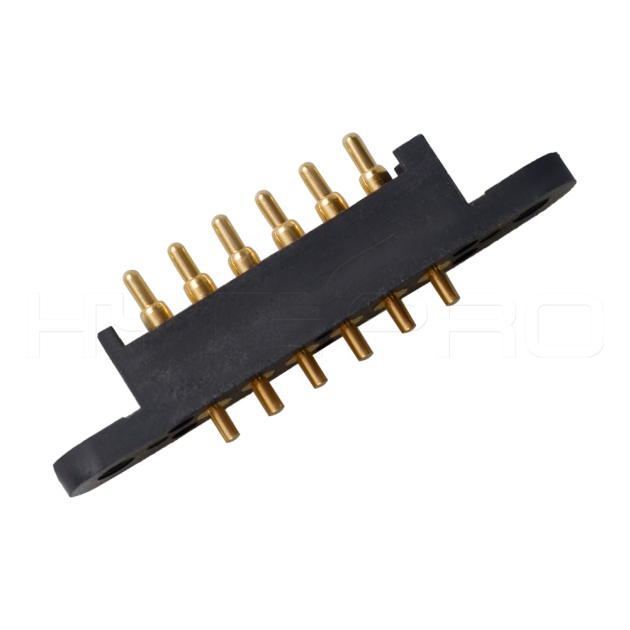

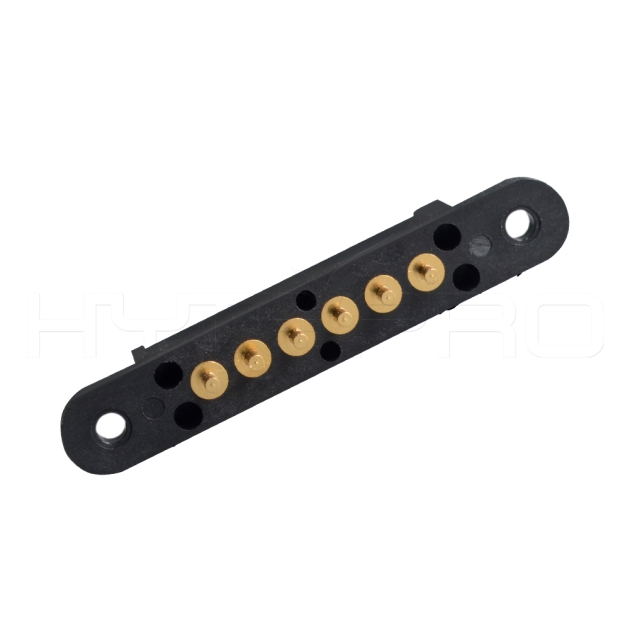

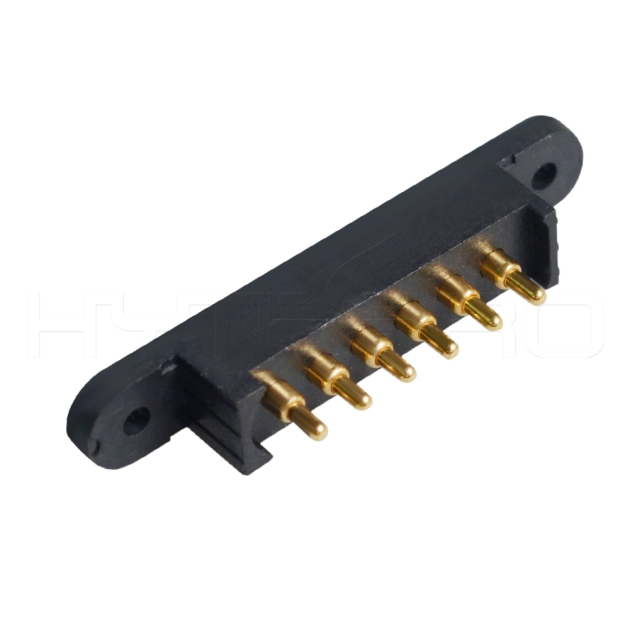

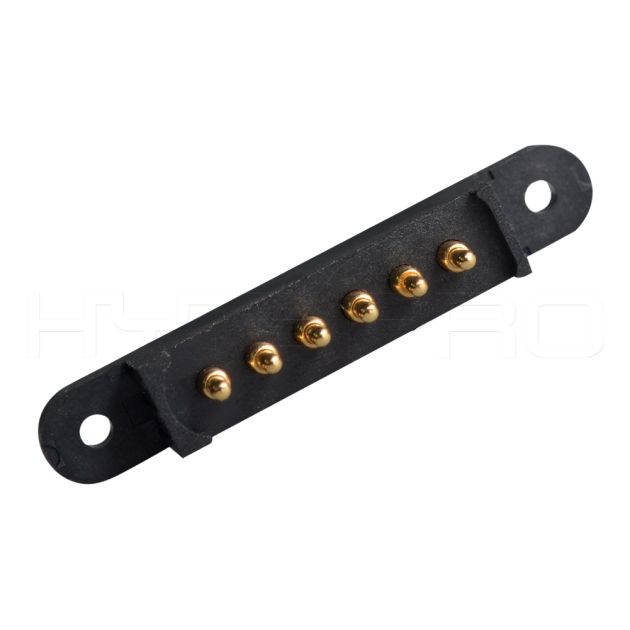

Product Name: SMT 6 Pin Pogo Pin Connector CON-706, Product ID: HTP-CON-C706- Salt spray test:5% salt solution for 72 hours without rus, Solderability test:230±5℃±1S

  • Trademark : HytePro®
  • Part Number : HTP-CON-C706
  • PIN : 6
  • Operating current : 2.0A
  • Operating Voltage : Below 36V@25°C
  • Plastic Material : PA46
  • Customizable : Yes
  • Spring Material : Stainless steel 304
  • Tube&Needle : Brass alloy C3604
  • Plating : Nickel plating50-100μ,Gold plating3μ"
  • Pin elastic : 100-120g
  • Durability : 100000 times(The spring force remains within the range)
  • Service life : Within 100,000 times
  • Support : SMT
  • RoHS : Compatible
  • :

Product Name: SMT 6 Pin Pogo Pin Connector C706

Part Number: HTP-CON-C706

- Salt spray test:5% salt solution for 72 hours without rust;

- Solderability test:230±5℃±1Seconds, Wet weld coverage is above 95%;

- Widely used in mobile, communications, chargers, medical equipment and so on;

- To ensure the reliability of the pogo pin performance, please use it within the recommended working height.
