2019-09-16 11:54:06   370

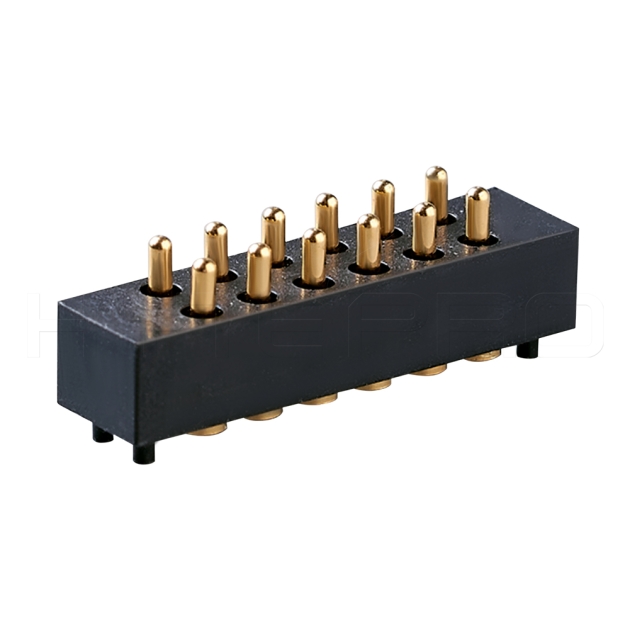

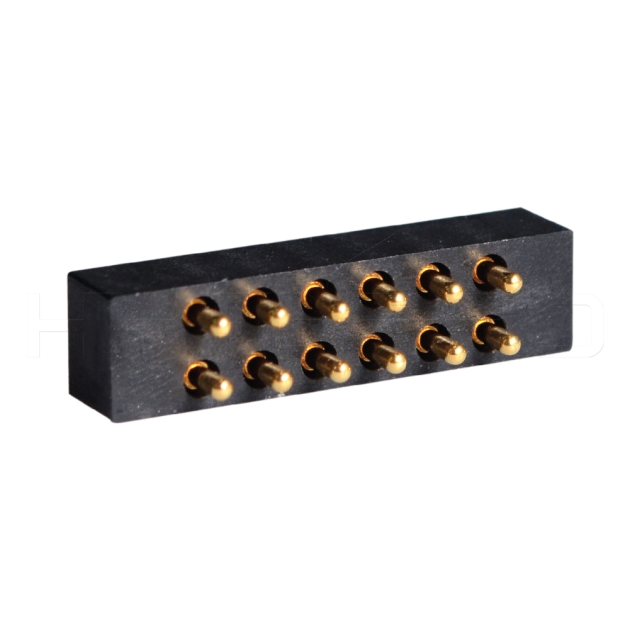

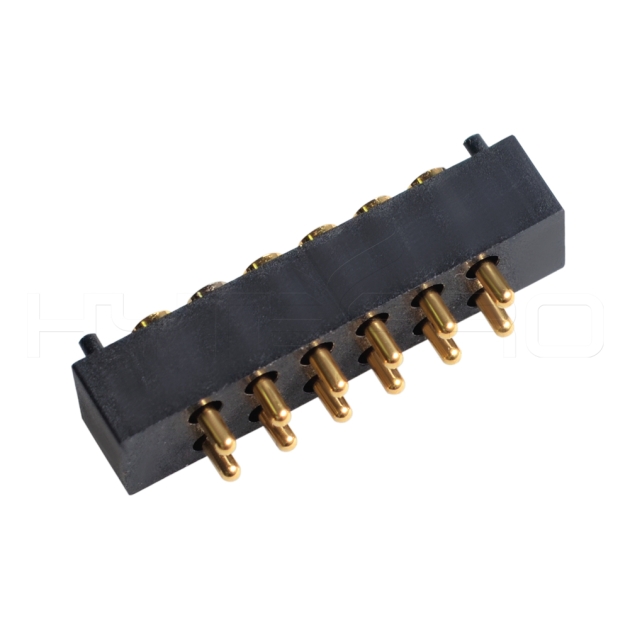

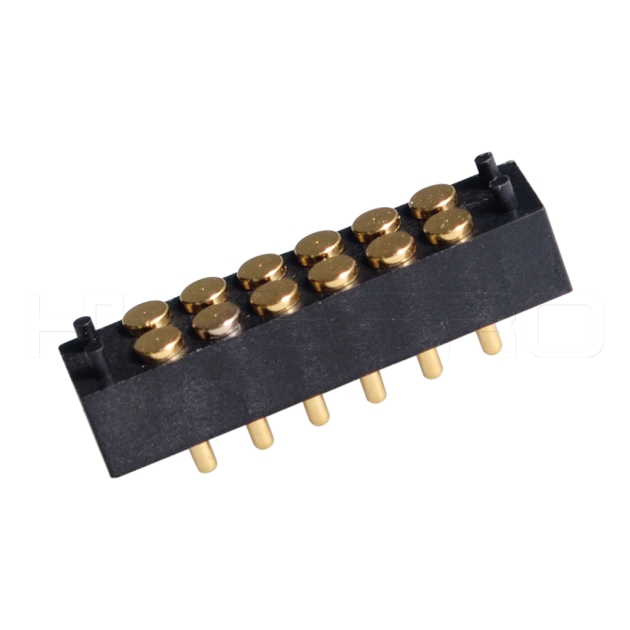

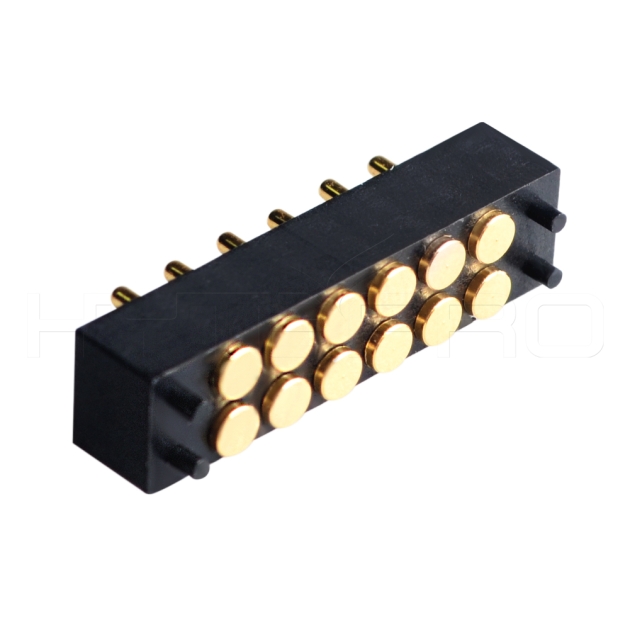

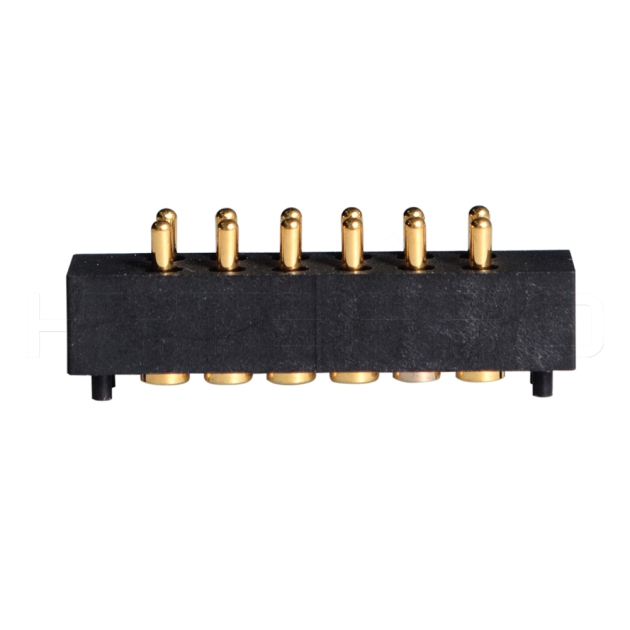

12 pin gold plated pogo pin charging connector, the syringe is made of brass alloy and is plated with nickel 80-120μ, gold plated 3μ, high temperature resistance

  • Trademark : HytePro®
  • Part Number : HTP-CON-C712
  • PIN : 12 pin
  • Operating current : 1.0A
  • Operating Voltage : Below 12V@25°C
  • Plastic Material : PA46
  • Customizable : Yes
  • Spring Material : Stainless steel 304
  • Tube&Needle : Brass alloy C3604
  • Plating : Nickel plating80-120μ,Gold plating3μ"
  • Pin elastic : 80-100g
  • Durability : 10000 times(The spring force remains within the range)
  • Service life : Within 10,000 times
  • Support : SMT
  • RoHS : Compatible
  • :

Product Name: 12 pin gold plated pogo pin charging connector 712

Part Number: HTP-CON-C712

12 pin gold plated pogo pin charging connector

- Materials and plating:

   The syringe is made of brass alloy and is plated with nickel 80-120μ"" gold plated 3μ".

   The needle is a brass alloy with a nickel-plated 80-120μ"" gold-plated 3μ".

   The spring is stainless steel SUS304.

- PA46, high temperature resistance.

- Continuous working current: 1.0A.

- Working voltage: less than 12V@25°C.

- Service life: more than 10,000 times.

- Durability: 10,000 spring forces are kept within the range.

- Salt spray test 5% salt solution was free of rust for 48 hours.

- Solderability test 230±5°C±1Seconds wet solder coverage is over 95%.

- Widely used in Mobile, Communications, Chargers,Sports bracelet,GPS tracker,Smart watch,Beauty instrument,Medical device,Unmanned aerial vehicle and etc.

- HytePro supports OEM&ODM,we could custom make the pitch,pogo pin length and evey details you want.
