2019-09-16 11:53:46   365

Product Name: 4 spring straight pin connector-740Product ID: HTP-CON-C740- Salt spray test:5% salt solution for 72 hours without rust

  • Trademark : HytePro®
  • Part Number : HTP-CON-C740
  • PIN : 4
  • Operating current : Less than 3.1A
  • Operating Voltage : Below 36V@25°C
  • Plastic Material : PA46
  • Customizable : Yes
  • Spring Material : Stainless steel 304
  • Tube&Needle : Brass alloy C3604
  • Plating : Nickel plating80-120μ,Gold plating3μ"
  • Pin elastic : 100-120g
  • Durability : 100000 times(The spring force remains within the range)
  • Service life : Within 100,000 times
  • Support : SMT
  • RoHS : Compatible
  • :

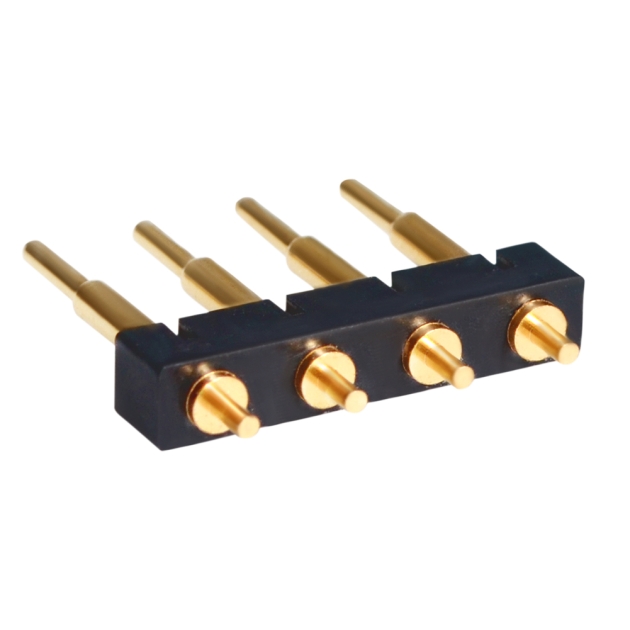

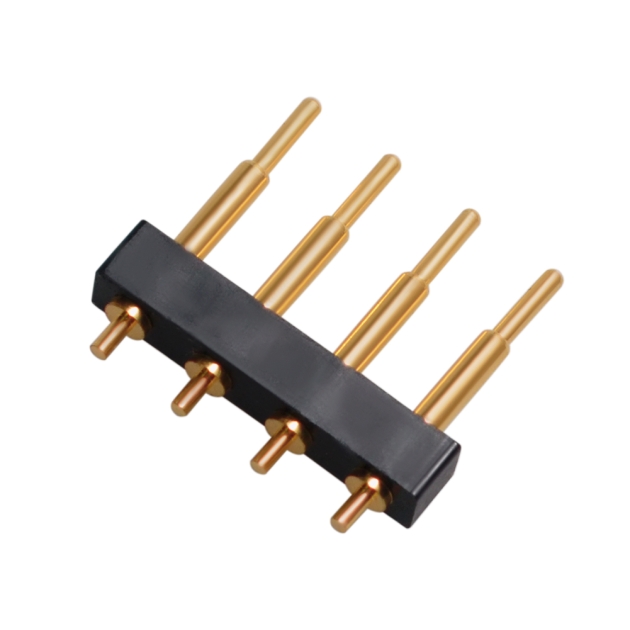

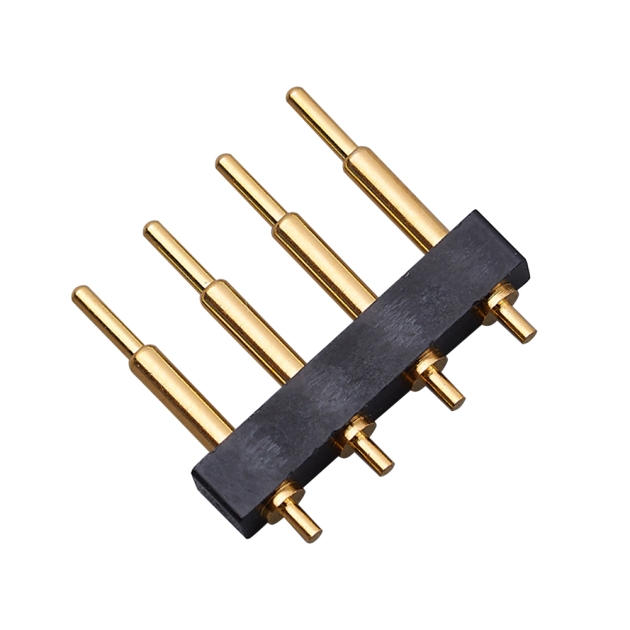

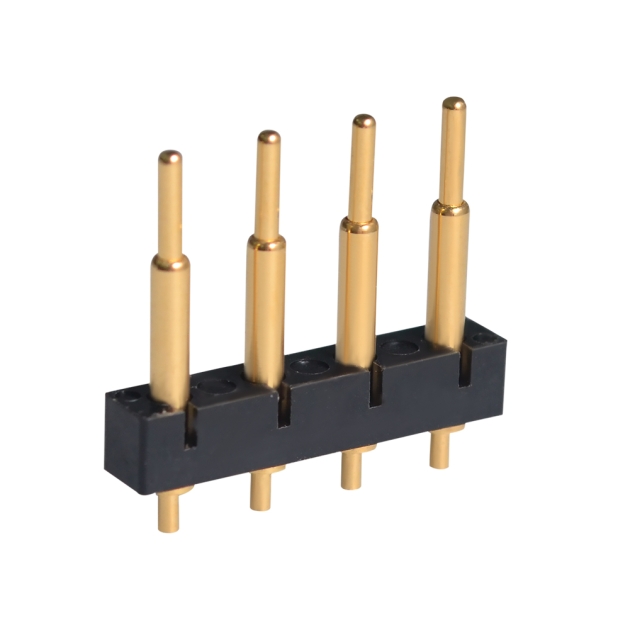

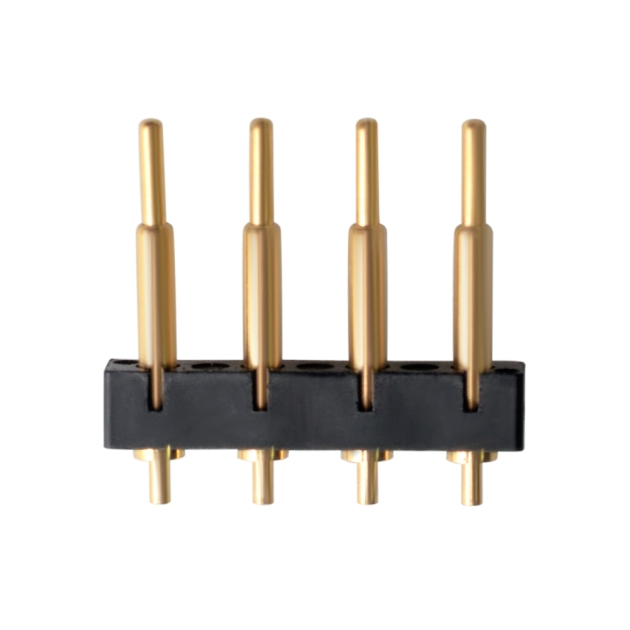

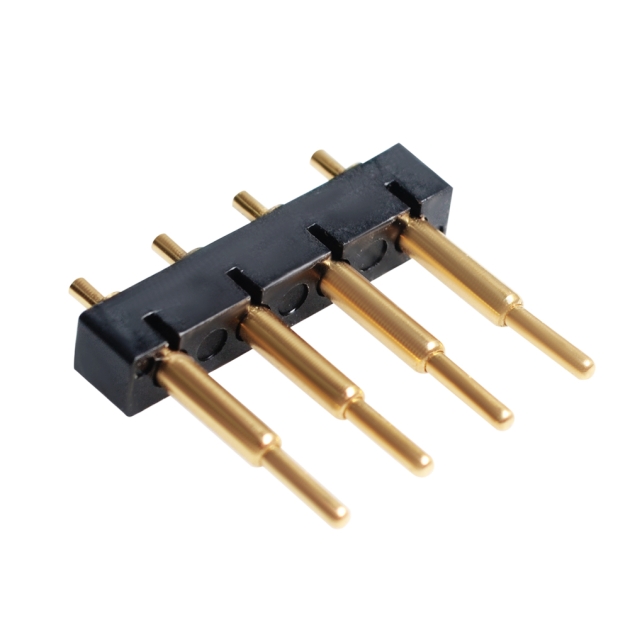

Product Name: 4 spring straight pin connector C740

Part Number: HTP-CON-C740

- Salt spray test:5% salt solution for 72 hours without rust;

- Solderability test:230±5℃±1Seconds, Wet weld coverage is above 95%;

- Pogo Pin or Spring Pin mainly used in Mobile, Communication, Charger, Medical Devices;

- To ensure the reliability of the pogo pin performance, please use it within the recommended working height.
