2019-05-03 00:02:45   243

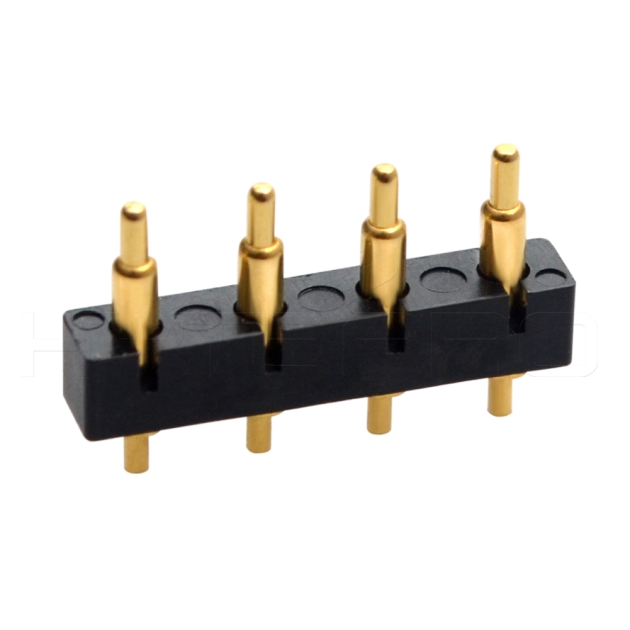

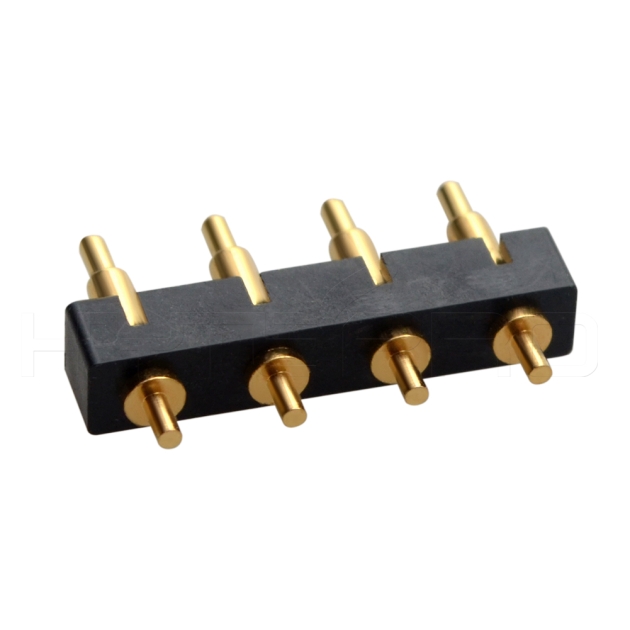

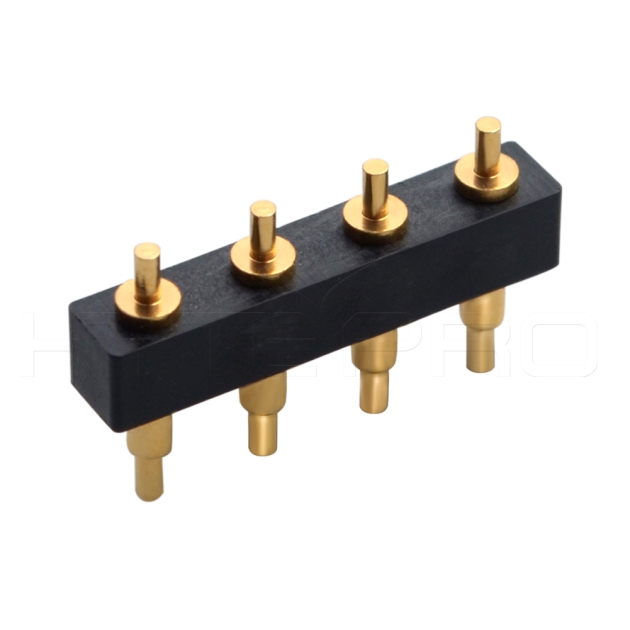

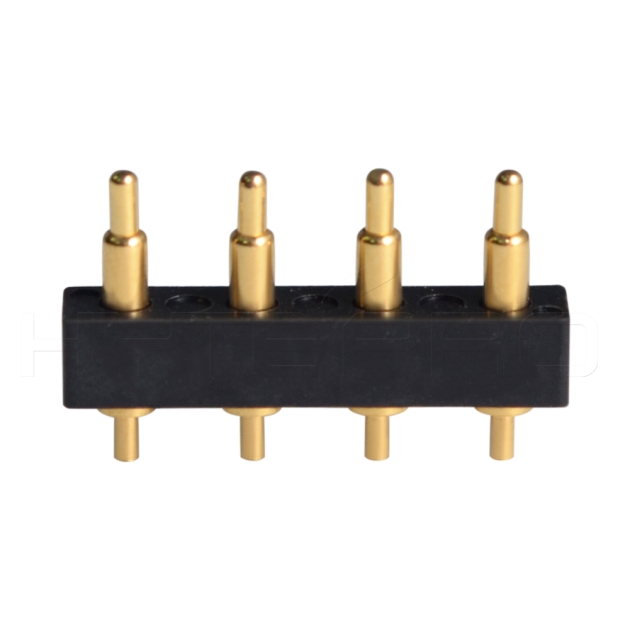

Product Name: Brass gold plated 4 pogo pin connector, Product ID: HTP-CON-C724, Salt spray test:5% salt solution for 24 hours without rust, Solderability test:230±5℃±1Seconds

  • Trademark : HytePro®
  • Part Number : HTP-CON-C724
  • PIN : 4
  • Operating current : 2.0A
  • Operating Voltage : Below 24V@25°C
  • Plastic Material : PA46
  • Customizable : Yes
  • Spring Material : Stainless steel 304
  • Tube&Needle : Brass alloy C3604
  • Plating : Nickel plating80-120μ,Gold plating3μ"
  • Pin elastic : 60g
  • Durability : 100000 times(The spring force remains within the range)
  • Service life : Within 100,000 times
  • Support : SMT
  • RoHS : Compatible
  • :

Product Name: Brass gold plated 4 pogo pin connector CON-724

Part Number: HTP-CON-C724

- Salt spray test:5% salt solution for 24 hours without rust;

- Solderability test:230±5℃±1Seconds, Wet weld coverage is above 95%;

- Widely used in mobile, communications, chargers, medical equipment and so on;

- To ensure the reliability of the pogo pin performance, please use it within the recommended working height.

Brass gold plated 4 pogo pin connector CON-724

Brass gold plated 4 pogo pin connector CON-724

hytepro pogo pin connector, Wet weld coverage is above 95%;Pogo Pin or Spring Pin mainly used in Mobile, Communication, Charger, Medical Devices;

hytepro pogo pin connector, Wet weld coverage is above 95%;Pogo Pin or Spring Pin mainly used in Mobile, Communication, Charger, Medical Devices;
