2021-10-26 17:49:48   1295

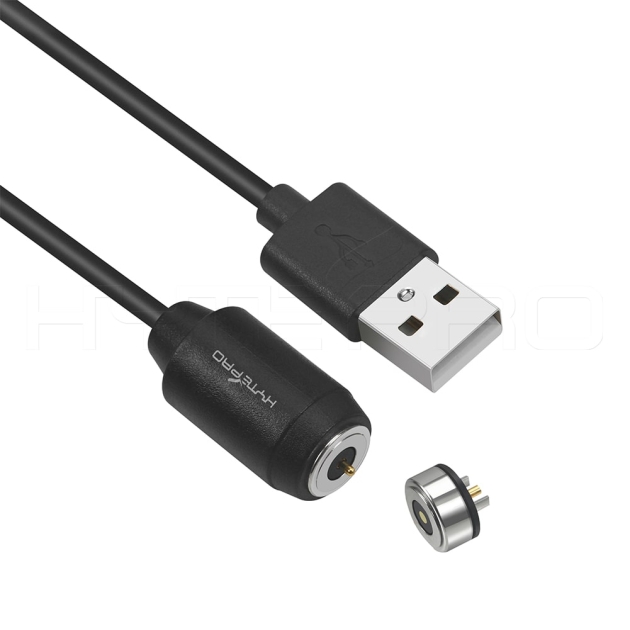

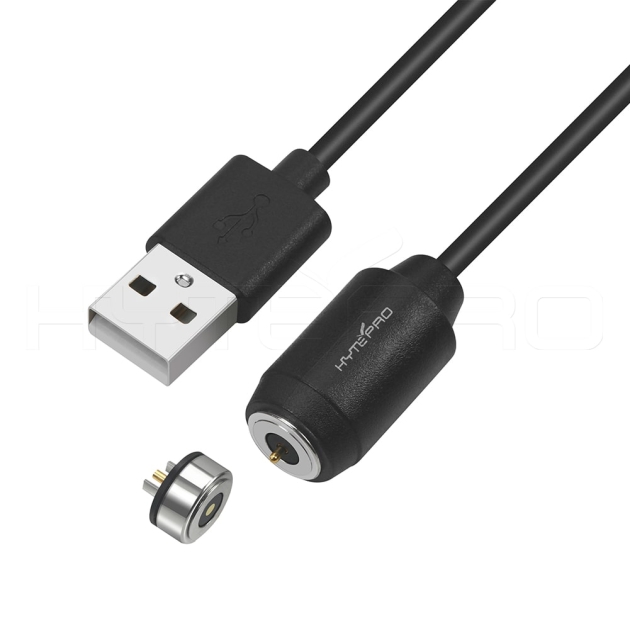

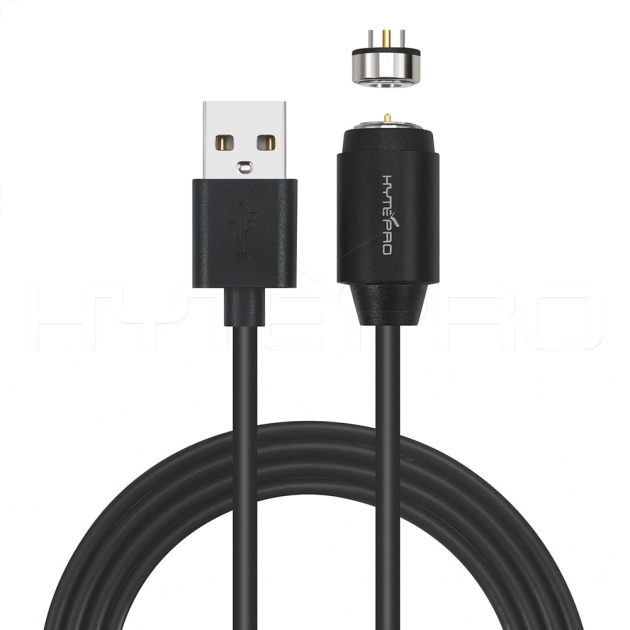

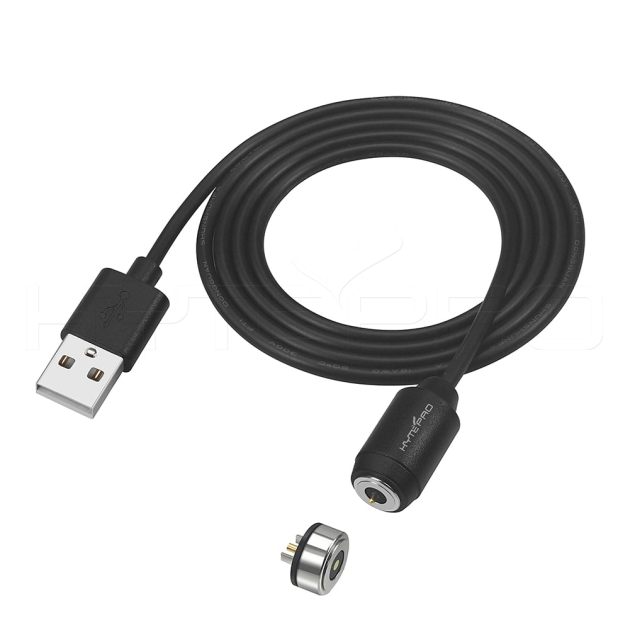

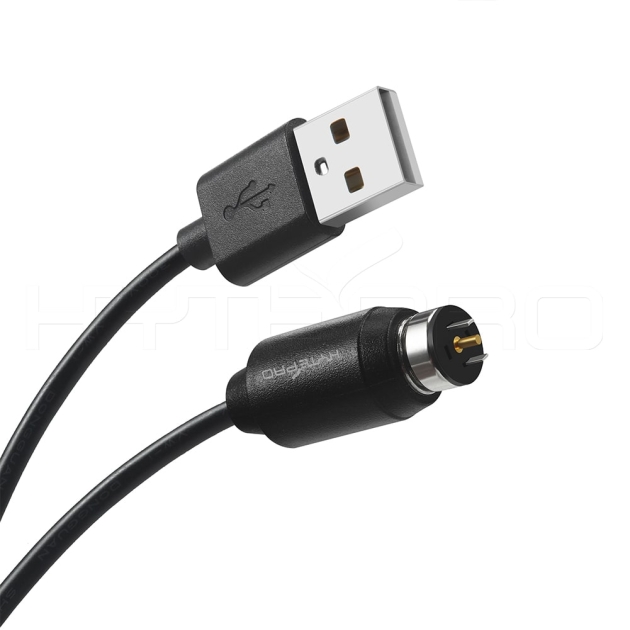

Straight type male part with usb cable, round shape with 10mm diameter, Magnetic tensile force is up to 1000gf, reliable connecting, Fast charging with 5~24V/6A and anti missing design

  • Trademark : HytePro®
  • Part Number : HTP-CA-M535
  • Mounting Type : Through Hole
  • Private Mold : Yes
  • Number of Pins : 2
  • Magnet Material : NdFeB
  • Magnetic Force : ≥ 1000gf
  • Length : 1.0 Meter
  • Jacket : TPE,PVC
  • Interface : USB A Male
  • Color : Black
  • Cable Type : Round
  • Conductor : Tinned Copper
  • Wire Gauge : 18AWG
  • Function : Charging
  • Insert Material : PA66+30% GF
  • Voltage Rating : 5~24 VDC
  • Current Rating : 6 Amps
  • Fastening Type : Magnetic
  • Operating Temperature : -40°C ~ 85°C
  • RoHS : Compliant
  • Customizable : Yes
  • Package : Poly bag,Carton box
  • Usage : Industrial Automation,Aerospace,Drones and Robots,Medicine and Healthcare,Consumer Electronics
X
Samples Request? Get quotation list?
We will reply to you within 30 minutes
Product Name:Straight 2 pin fast charging magnetic usb cables M535

Product Name: Straight 2 pin fast charging magnetic usb cables M535

Part Number: HTP-CA-M535

- Straight type male part with usb cable, round shape with 10mm diameter;

- Magnetic tensile force about 1000gf, reliable connecting;

- Fast charging with 5~24V/6A and anti missing design;

- Long service life, can be connected more than 10000 times.

- Male connector with DC charging cable/USB cable/open end/terminal, easy to use;

- HytePro self-mating magnetic connector provides all common functions and is suitable for power and data sync;

- Hytepro has 12 years experience in custom make of magnetic connectors.

HytePro magnetic connectors are more convenient, requiring no precise alignment, the male and female part will be automatically connected by magnetic adsorption, effectively prevent mis-plugging.

HytePro fast charging magnetic cable features a pair of male and female magnetic connector that helps guide the plug to the power and data port of your devices.

The pogo pin contacts are gold plated, NdFeB magnet nickel plated, can load more higher currents, keep more stable connection,  to achieve fast charging and data transfer capabilities.

HytePro magnetic connection is strong enough to resist most unintended disconnects, ensure more stable electrical connectivity, but if someone trips on the cable, it will disconnect to stay safe of your devices.

HytePro magnetic connectors are widely application, such as industrial automation, aerospace, drones and robots, medicine and healthcare, sports bracelet, GPS tracker, smart watch, beauty instrument and etc.

HytePro magnetic charging cable upgrade to TPE jacket and TPE over moulding, become more soft and comfortable, delicate touch, high elasticity, bring an amazing experience, greatly improve the feel and more durable.
