2021-10-24 23:06:11   5338

For data Sync and charging with anti misplug design, pogo pin contact stably working

  • Trademark : HytePro®
  • Part Number : HTP-CON-M425P
  • Mounting Type : Through Hole
  • Private Mold : Yes
  • Number of Pins : 5
  • Magnetic Force : ≥600gf
  • Voltage Rating : 5~24 VDC
  • Current Rating : 2A
  • Plastic Housing : PA66+30% GF
  • Magnet : NdFeB
  • Spring : Stainless steel SUS304/SWP
  • Needle : Brass C2700 / C3604
  • Insulation Resistance : 100MΩ at 100VDC
  • Gold Plated : 3~30μ
  • Operating Temperature : -40°C ~ 85°C
  • Contact Impedance : Dynamics≤30MΩ
  • RoHS : Compliant
  • Customizable : Yes
  • Package : Tube,Carton box
  • Usage : Industrial Automation,Aerospace,Drones and Robots,Medicine and Healthcare,Consumer Electronics
X
Samples Request? Get quotation list?
We will reply to you within 30 minutes

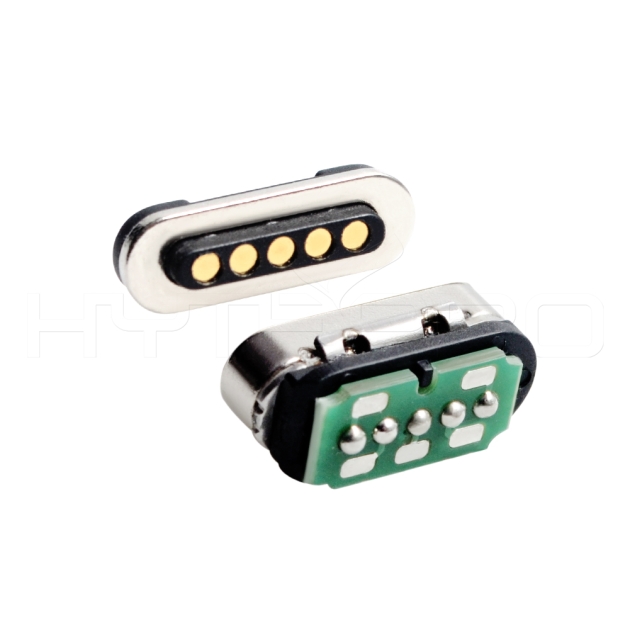

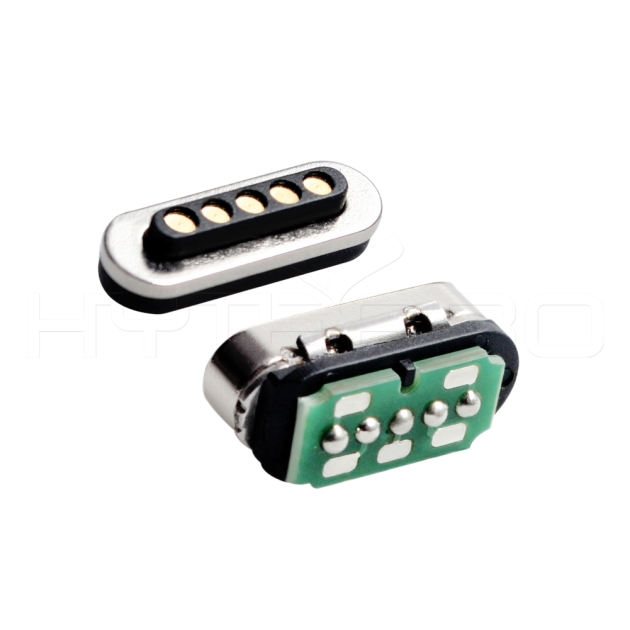

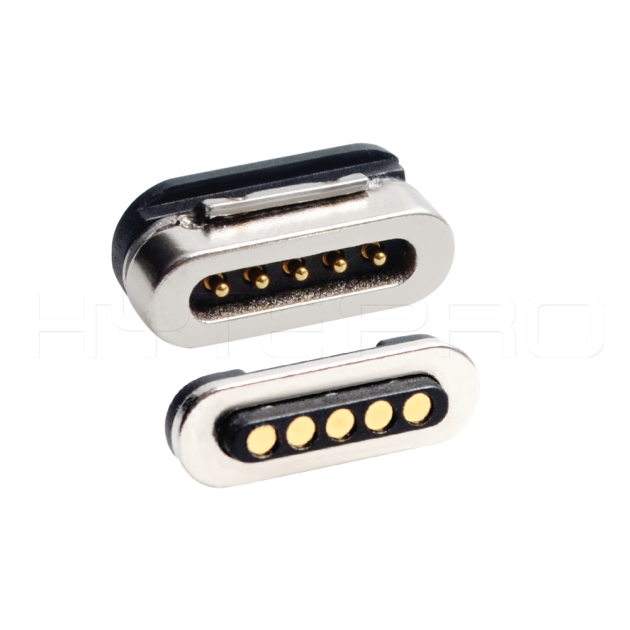

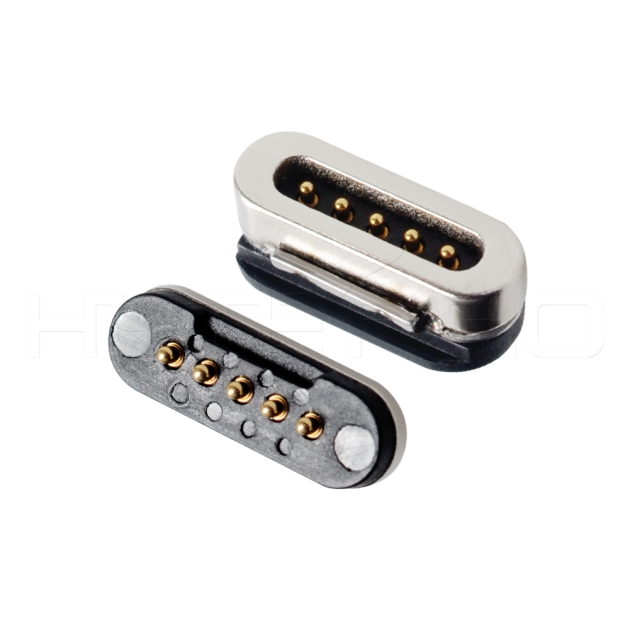

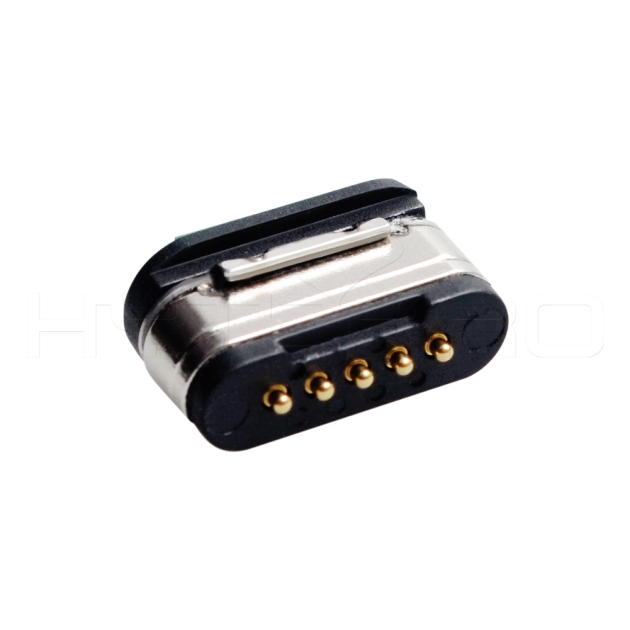

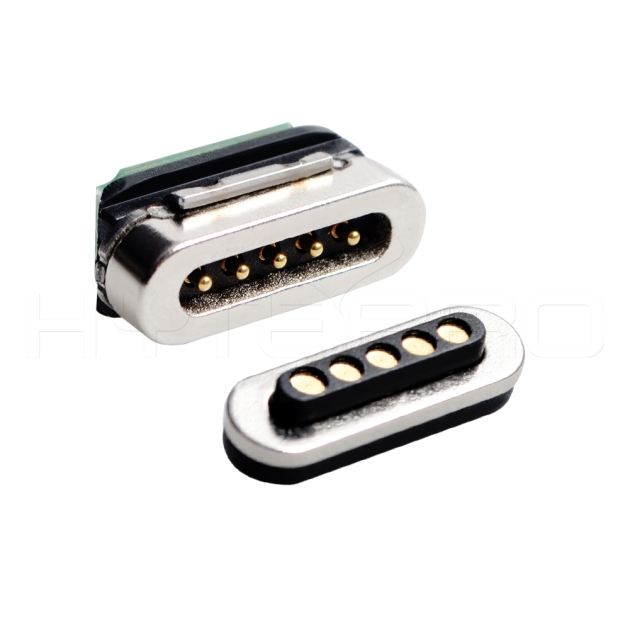

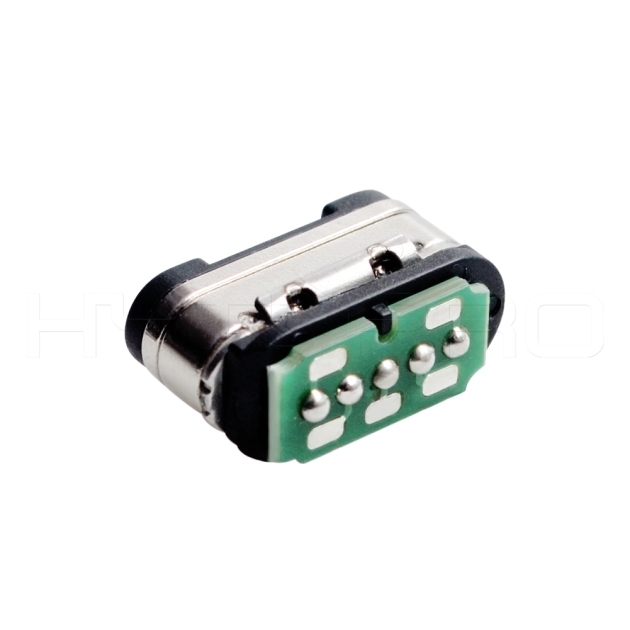

Product Name:5 pins pogo pin magnetic power connectors M425P

Product Name: 5 pins pogo pin magnetic power connectors M425P

Part Number: HTP-CON-M425P

- Pin type: End with Pogo pin.

- For data Sync and charging with anti misplug design.

- Magnetic tensile force about 600g, stably working.

- The contact pins is 5μ gold plated and magnets is nickel-plated.

- Pogo pin and stainless steel fixed column structure.

- PA66+30%GF Plastic body design and support 5V/3A.

HytePro magnetic connectors are more convenient, requiring no precise alignment, the male and female part will be automatically connected by magnetic adsorption, effectively prevent mis-plugging.

HytePro fast charging magnetic cable features a pair of male and female magnetic connector that helps guide the plug to the power and data port of your devices.

The pogo pin contacts are gold plated, NdFeB magnet nickel plated, can load more higher currents, keep more stable connection,  to achieve fast charging and data transfer capabilities.

HytePro magnetic connection is strong enough to resist most unintended disconnects, ensure more stable electrical connectivity, but if someone trips on the cable, it will disconnect to stay safe of your devices.

HytePro magnetic connectors are widely application, such as industrial automation, aerospace, drones and robots, medicine and healthcare, sports bracelet, GPS tracker, smart watch, beauty instrument and etc.

5pin pogo pin magnetic power connectors M425P5pin pogo pin magnetic power connectors M425P5pin pogo pin magnetic power connectors M425P5pin pogo pin magnetic power connectors M425P5pin pogo pin magnetic power connectors M425P
