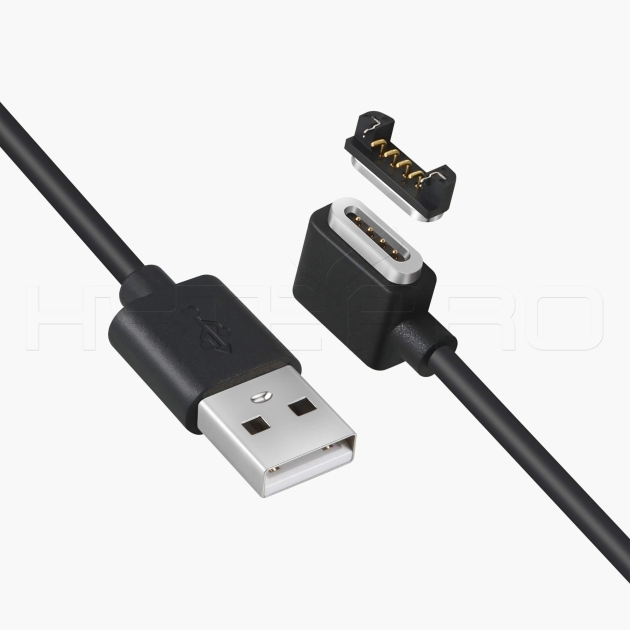

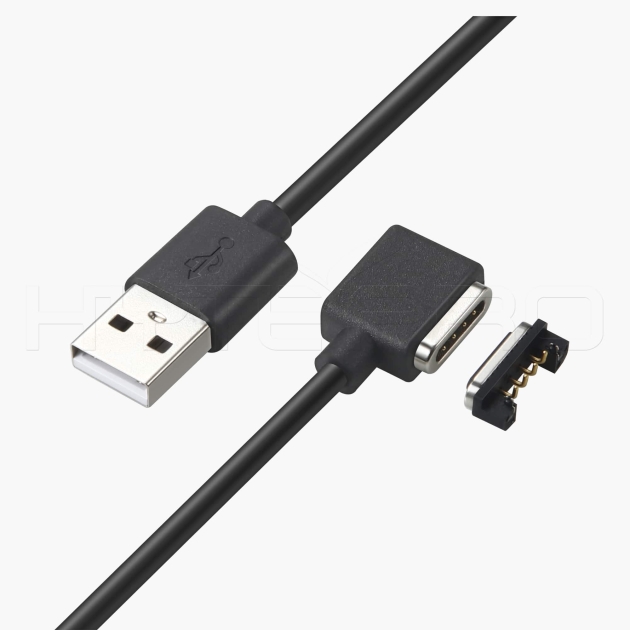

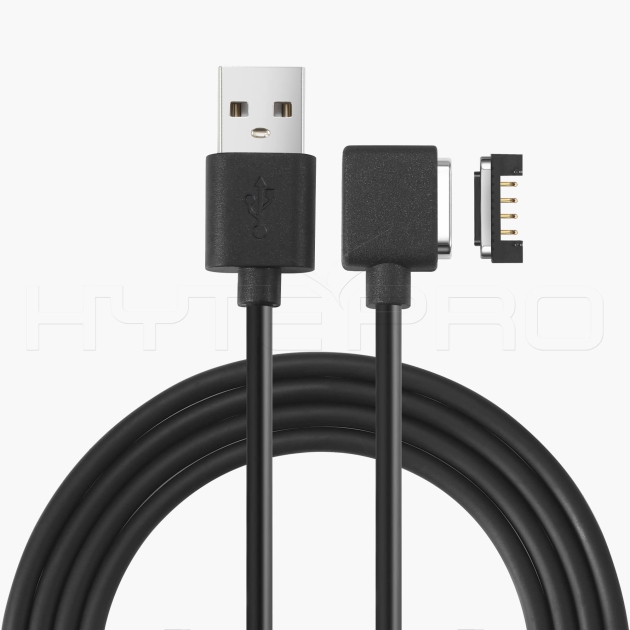

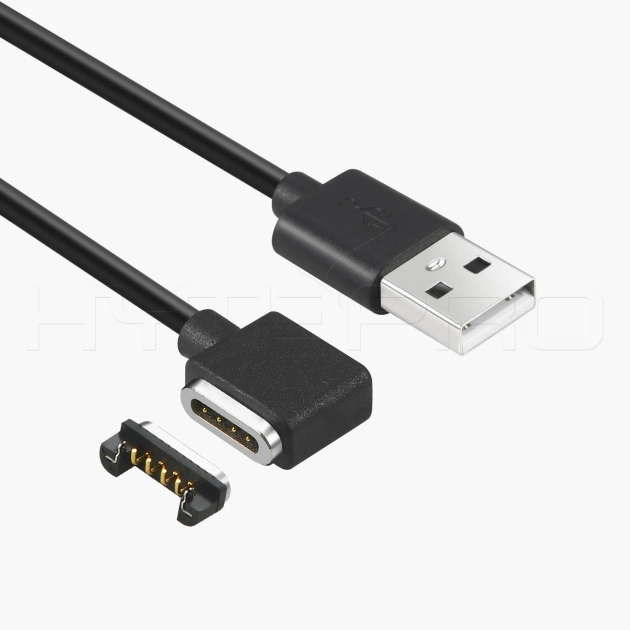

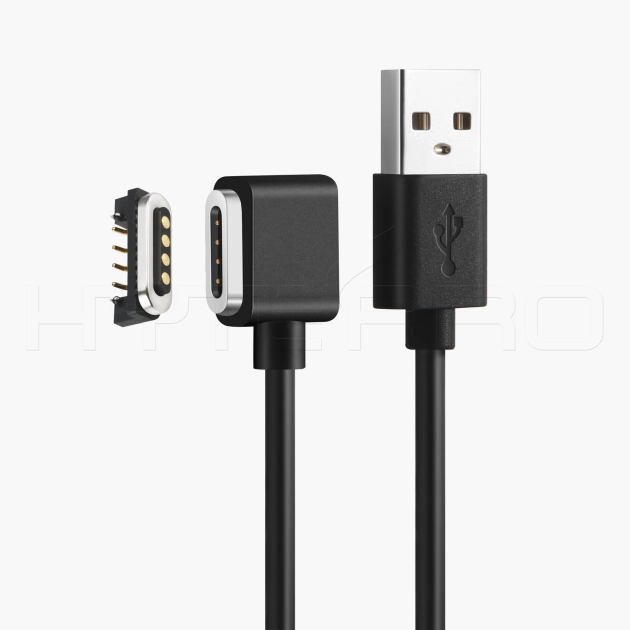

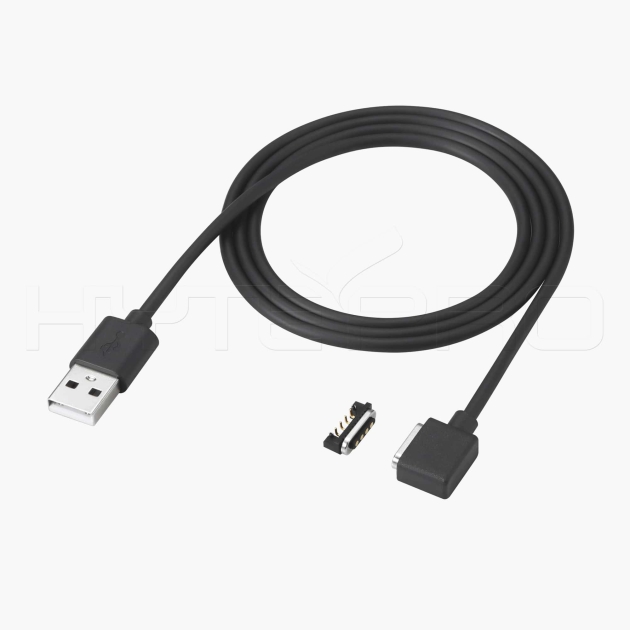

hytepro TPE jacket and TPE overmolding right angel 4 pin magnetic usb cable supports data transfer and charging, with anti-misplugging design

  • Trademark : HytePro®
  • Part Number : HTP-CA-M501B
  • Mounting Type : Through Hole
  • Private Mold : Yes
  • Number of Pins : 4
  • Magnet Material : NdFeB
  • Magnetic Force : ≥ 600gf
  • Length : 1.0 Meter
  • Jacket : TPE
  • Interface : USB A Male
  • Color : Black
  • Cable Type : Round
  • Conductor : Tinned Copper
  • Wire Gauge : 22AWG
  • Function : Charging and data transfer
  • Insert Material : PA66+30% GF
  • Voltage Rating : 5~24 VDC
  • Current Rating : 2 Amps
  • Fastening Type : Magnetic
  • Operating Temperature : -40°C ~ 85°C
  • RoHS : Compliant
  • Customizable : Yes
  • Package : Poly bag
  • Usage : Industrial Automation,Aerospace,Drones and Robots,Medicine and Healthcare,Consumer Electronics
X
Samples Request? Get quotation list?
We will reply to you within 30 minutes
Product Name:Custom USB smart magnetic 4 pin side-bent cable M501B

Product Name: Custom USB smart magnetic 4 pin side-bent cable M501B

Part Number: HTP-CA-M501B

-4 pin magnetic usb cable supports data transfer and charging, with anti-misplugging design.

-The design of parallel direction to connect with device meet user's diversified demands.

-Upgraded material,TPE, make cable more flexible.

-Hytepro has an rich experience in making magnetic cable, connector and provides custom sevice for customer.

HytePro magnetic connectors are more convenient, requiring no precise alignment, the male and female part will be automatically connected by magnetic adsorption, effectively prevent mis-plugging.

HytePro fast charging magnetic cable features a pair of male and female magnetic connector that helps guide the plug to the power and data port of your devices.

The pogo pin contacts are gold plated, NdFeB magnet nickel plated, can load more higher currents, keep more stable connection,  to achieve fast charging and data transfer capabilities.

HytePro magnetic connection is strong enough to resist most unintended disconnects, ensure more stable electrical connectivity, but if someone trips on the cable, it will disconnect to stay safe of your devices.

HytePro magnetic connectors are widely application, such as industrial automation, aerospace, drones and robots, medicine and healthcare, sports bracelet, GPS tracker, smart watch, beauty instrument and etc.

HytePro magnetic charging cable upgrade to TPE jacket and TPE over moulding, become more soft and comfortable, delicate touch, high elasticity, bring an amazing experience, greatly improve the feel and more durable.
