2021-10-26 13:03:18   3188

Data Sync and charging with anti-misplugging design, ultrasonic welding panel mount, stably working

  • Trademark : HytePro®
  • Part Number : HTP-CON-M425NS
  • Mounting Type : Through Hole
  • Private Mold : Yes
  • Number of Pins : 5
  • Magnetic Force : ≥600gf
  • Voltage Rating : 5~24 VDC
  • Current Rating : 3A
  • Plastic Housing : ABS+PC
  • Magnet : NdFeB
  • Spring : Stainless steel SUS304/SWP
  • Needle : Brass C2700 / C3604
  • Insulation Resistance : 100MΩ at 100VDC
  • Gold Plated : 3~30μ
  • Operating Temperature : -40°C ~ 85°C
  • Contact Impedance : Dynamics≤30MΩ
  • RoHS : Compliant
  • Customizable : Yes
  • Package : Tube,Carton box
  • Usage : Industrial Automation,Aerospace,Drones and Robots,Medicine and Healthcare,Consumer Electronics
X
Samples Request? Get quotation list?
We will reply to you within 30 minutes

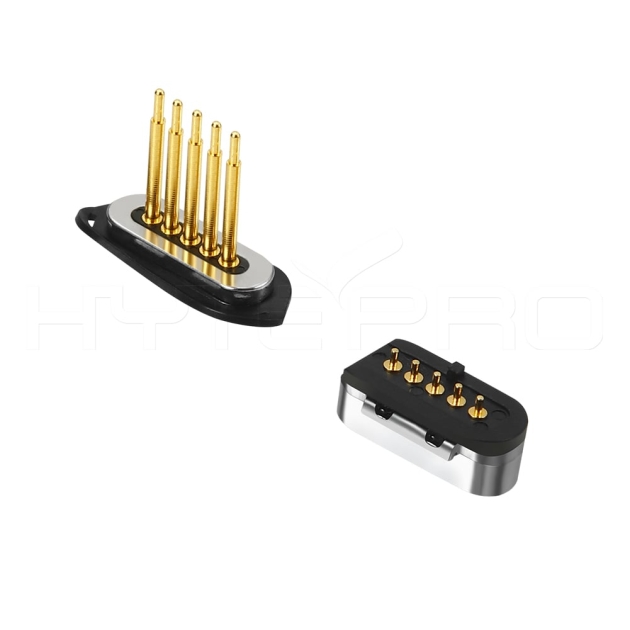

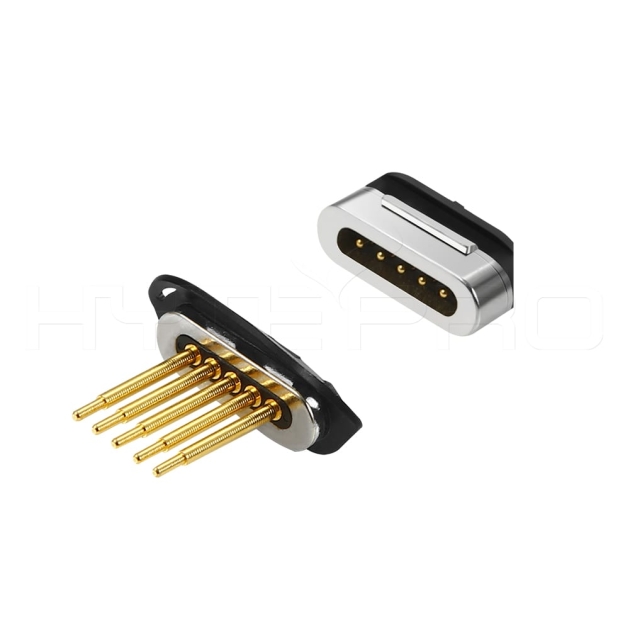

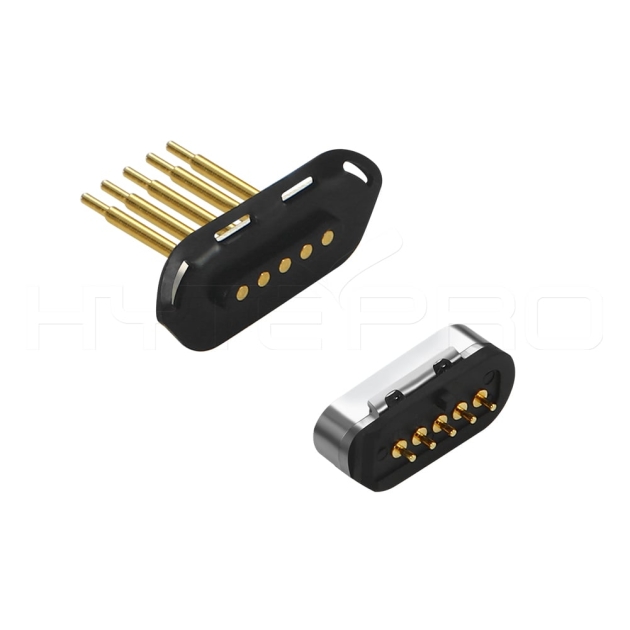

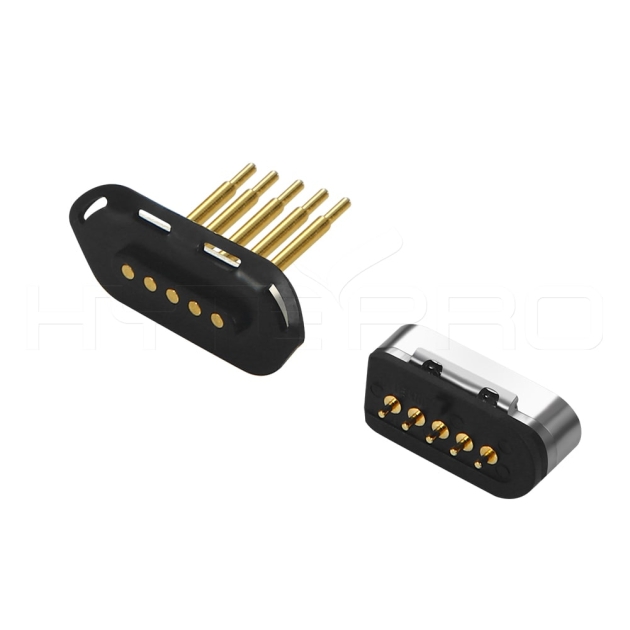

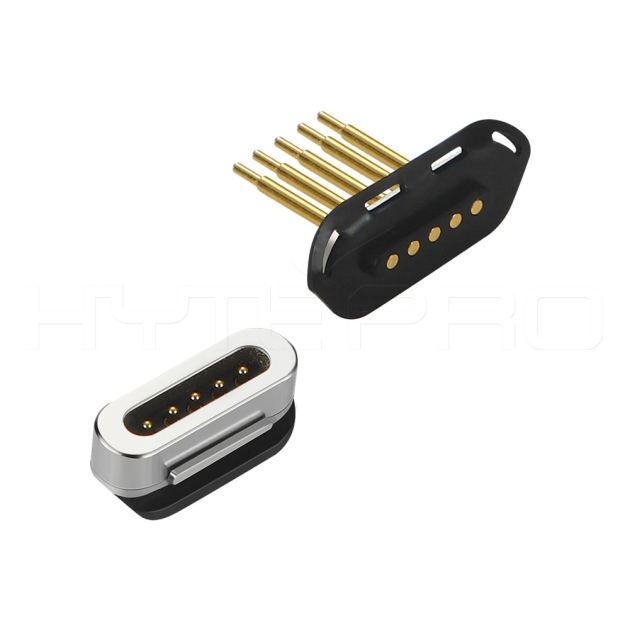

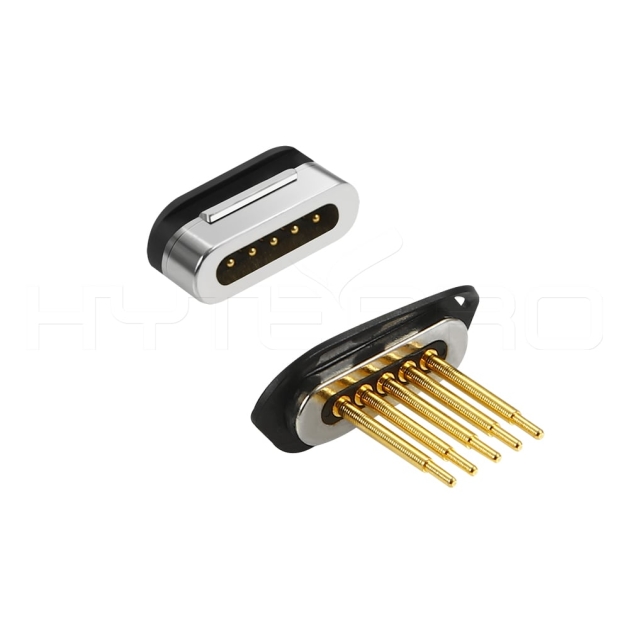

Product Name:Single row 5 solder pins magnetic connector M425NS

Product Name: Single row 5 solder pins magnetic connector M425NS

Part Number: HTP-CON-M425NS

- For data Sync and charging with anti-misplugging design.

- Magnetic tensile force about 650g, stably working.

- The contact pins is 5μ gold plated and magnets is nickel-plated.

- Pogo pin and stainless steel fixed column structure.

- PC with ABS+PC Plastic body design and support 5V/3A.

- HytePro majors in magnetic usb cable for about 8 years,supports OEM&ODM,we could custom make every details you want.

HytePro magnetic connectors are more convenient, requiring no precise alignment, the male and female part will be automatically connected by magnetic adsorption, effectively prevent mis-plugging.

HytePro fast charging magnetic cable features a pair of male and female magnetic connector that helps guide the plug to the power and data port of your devices.

The pogo pin contacts are gold plated, NdFeB magnet nickel plated, can load more higher currents, keep more stable connection,  to achieve fast charging and data transfer capabilities.

HytePro magnetic connection is strong enough to resist most unintended disconnects, ensure more stable electrical connectivity, but if someone trips on the cable, it will disconnect to stay safe of your devices.

HytePro magnetic connectors are widely application, such as industrial automation, aerospace, drones and robots, medicine and healthcare, sports bracelet, GPS tracker, smart watch, beauty instrument and etc.

Single row 5 solder pins magnetic connectorSingle row 5 solder pins magnetic connectorSingle row 5 solder pins magnetic connectorSingle row 5 solder pins magnetic connectorSingle row 5 solder pins magnetic connector

Self mating mount

HytePro self-mating mount magnetic connector attracted by the magnetic force and actually slides into the socket automatically when the plug approaches the socket. This makes it efficient and comfortable to handle and ensure proper connection.

Auto break-away function

The auto break-away function is designed to disconnect when the plug or cable is subjected to a sharp pull (intentional or unintentional). This avoids the risk of injury to the user and damage to the connector. Deliberate removal of the plug is quick and easy due to the disconnect function.

Stable, fast, reliable, simple

HytePro magnetic self-matching connectors automatically detect connections and prevent tearing. They are ideal for connections that require more frequent connections and disconnections.

Powerful Magnetic Connector

HytePro has developed the powerful magnetic connector that offers an intelligent alternative to mechanical mating. HytePro self-mating magnetic connector provides all common functions and is suitable for power and data sync.
