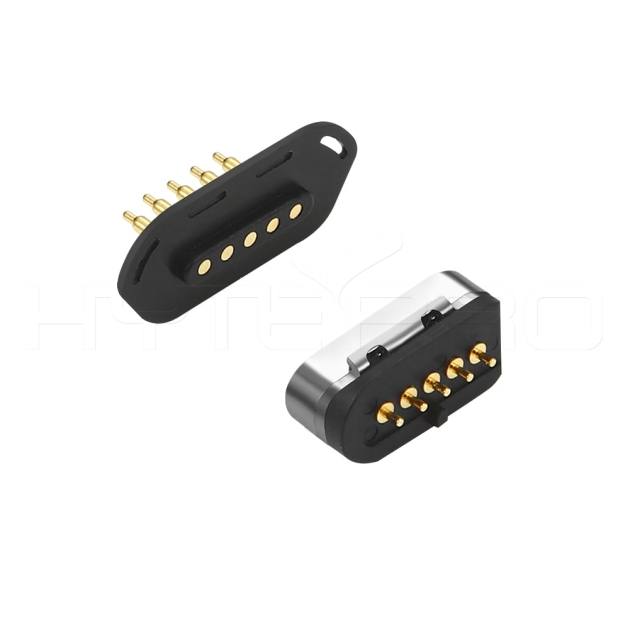

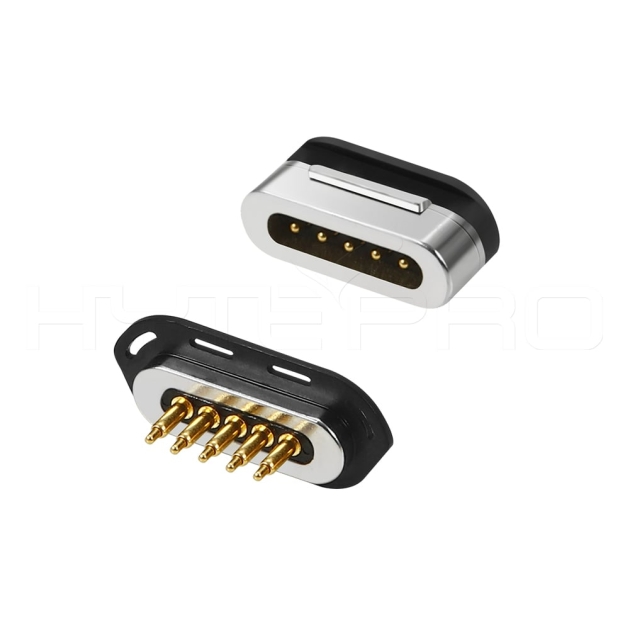

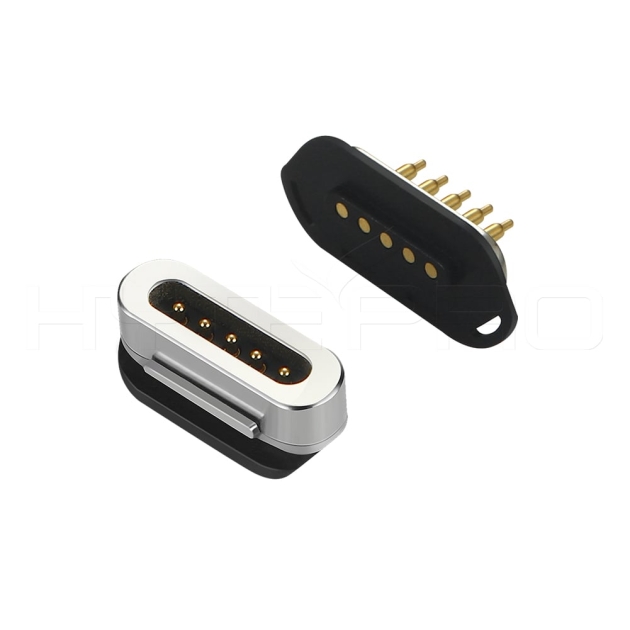

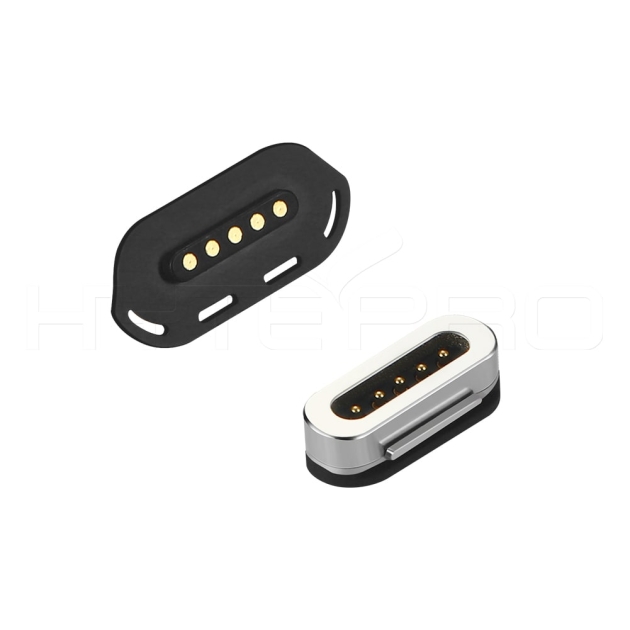

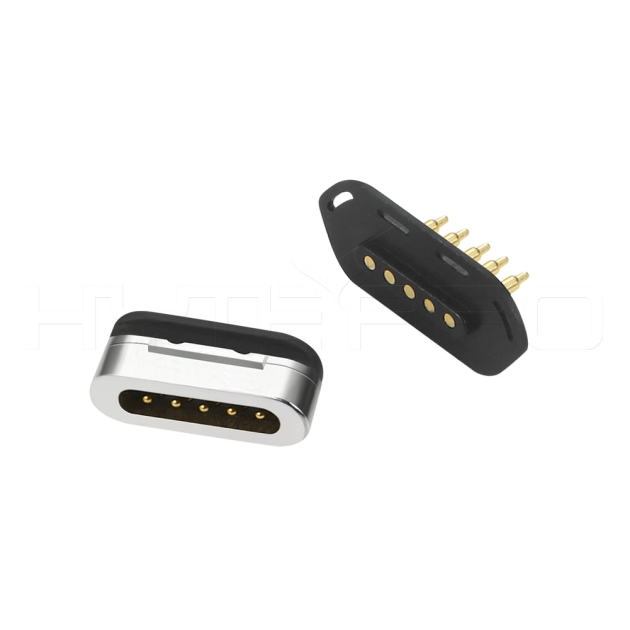

Panel mount female part, Exclusive design magnetic PCB connector, Charging with 5V/2A and anti-reverse design, Data transfer and power charging

  • Trademark : HytePro®
  • Part Number : HTP-CON-M425NP
  • Mounting Type : Through Hole
  • Private Mold : Yes
  • Number of Pins : 5
  • Magnetic Force : ≥600gf
  • Voltage Rating : 5~24 VDC
  • Current Rating : 2A
  • Plastic Housing : ABS+PC
  • Magnet : NdFeB
  • Spring : Stainless steel SUS304/SWP
  • Needle : Brass C2700 / C3604
  • Insulation Resistance : 100MΩ at 100VDC
  • Gold Plated : 3~30μ
  • Operating Temperature : -40°C ~ 85°C
  • Contact Impedance : Dynamics≤30MΩ
  • RoHS : Compliant
  • Customizable : Yes
  • Package : Tube,Carton box
  • Usage : Industrial Automation,Aerospace,Drones and Robots,Medicine and Healthcare,Consumer Electronics
X
Samples Request? Get quotation list?
We will reply to you within 30 minutes
Product Name:Panel mount 5 pin magnetic connector M425NP

Product Name: Panel mount 5 pin magnetic connector M425NP

Part Number: HTP-CON-M425NP

-Magnetic tensile force is up to 650gf;

-Exclusive design magnetic PCB connector;

-Charging with 5V/2A and anti-reverse design;

-Data transfer and power charging, designing magnets pole for anti-reverse;

-Widely used in smart wearable devices, storage devices, electronic devices, medical devices, etc;

- Pogo pin design male and female panel mout structure, round magnets design make better experience.

HytePro magnetic connectors are more convenient, requiring no precise alignment, the male and female part will be automatically connected by magnetic adsorption, effectively prevent mis-plugging.

HytePro fast charging magnetic cable features a pair of male and female magnetic connector that helps guide the plug to the power and data port of your devices.

The pogo pin contacts are gold plated, NdFeB magnet nickel plated, can load more higher currents, keep more stable connection,  to achieve fast charging and data transfer capabilities.

HytePro magnetic connection is strong enough to resist most unintended disconnects, ensure more stable electrical connectivity, but if someone trips on the cable, it will disconnect to stay safe of your devices.

HytePro magnetic connectors are widely application, such as industrial automation, aerospace, drones and robots, medicine and healthcare, sports bracelet, GPS tracker, smart watch, beauty instrument and etc.
