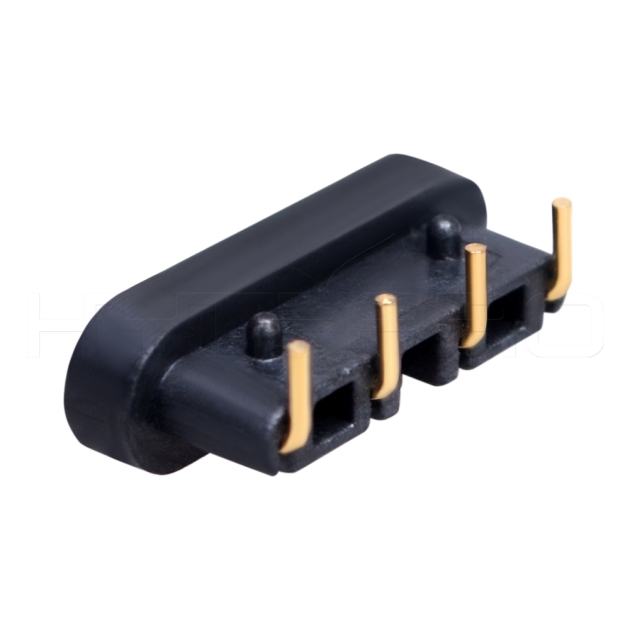

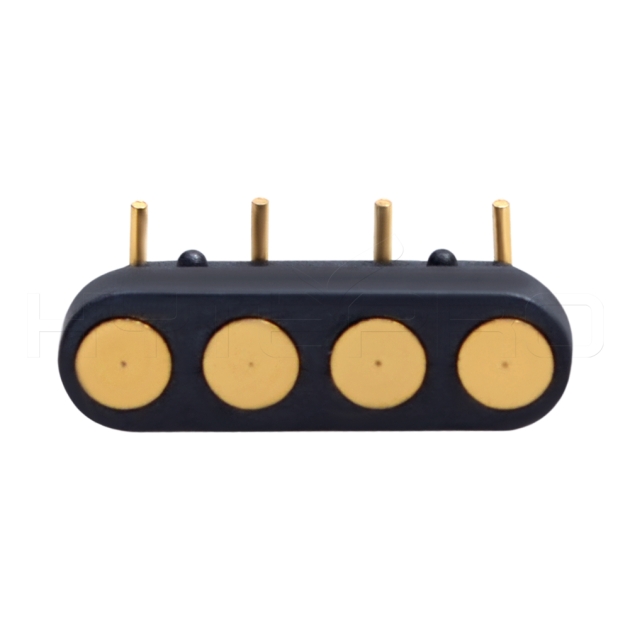

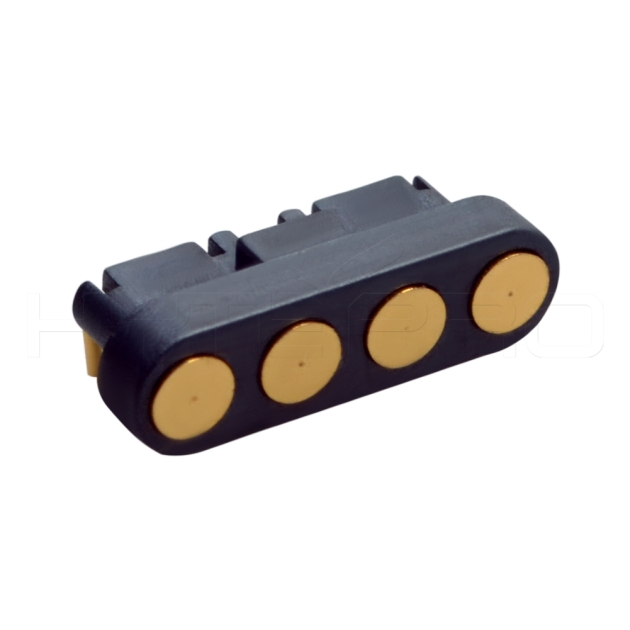

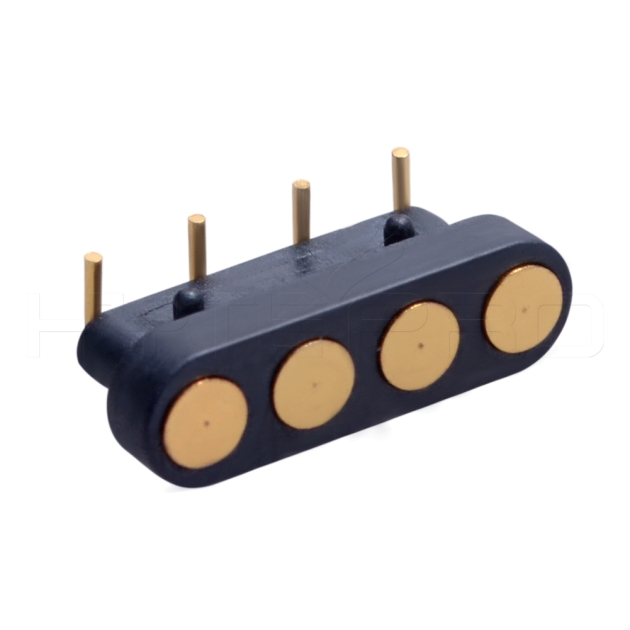

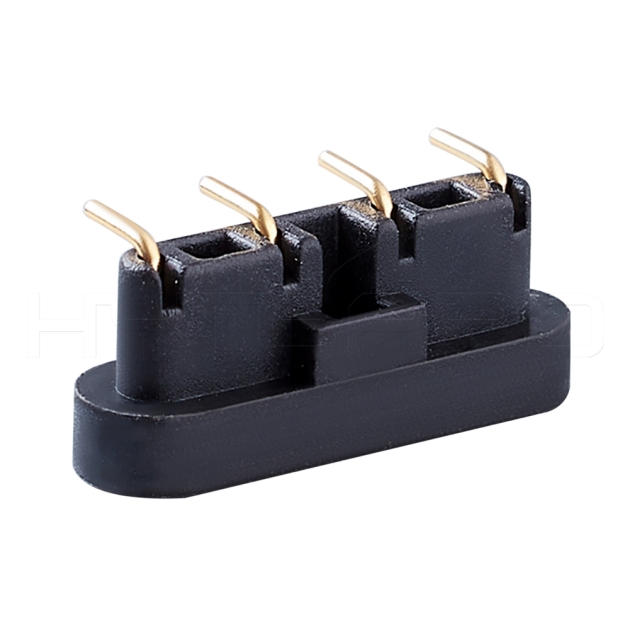

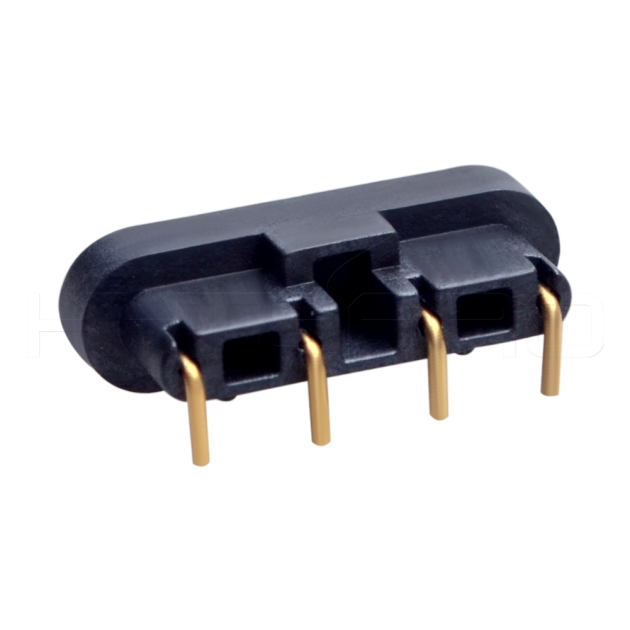

Right angle 4 pogo pin contacts power connector C714
Right angle 4 pogo pin contacts power connector C714
Right angle 4 pogo pin contacts power connector C714
Right angle 4 pogo pin contacts power connector C714
Right angle 4 pogo pin contacts power connector C714
Right angle 4 pogo pin contacts power connector C714
Right angle 4 pogo pin contacts power connector C714
Right angle 4 pogo pin contacts power connector C714
Right angle 4 pogo pin contacts power connector C714
Right angle 4 pogo pin contacts power connector C714
Right angle 4 pogo pin contacts power connector C714
Right angle 4 pogo pin contacts power connector C714

Right angle 4 pogo pin contacts power connector C714

2019-09-16 11:49:37   473

Durability: 10,000 spring forces are kept within range.Positive force: working point 80-100g,Salt spray test 5% salt solution was rust-free for 72 hours.

  • Trademark : HytePro®
  • Part Number : HTP-CON-C714
  • PIN : 4 pin
  • Operating current : 2.0A
  • Operating Voltage : Below 12V@25°C
  • Plastic Material : PA46
  • Customizable : Yes
  • Spring Material : Stainless steel 304
  • Tube&Needle : Brass alloy C3604
  • Plating : Nickel plating80-120μ,Gold plating3μ"
  • Pin elastic : 100-120g
  • Durability : 10000 times(The spring force remains within the range)
  • Service life : Within 10,000 times
  • Support : SMT
  • RoHS : Compatible
  • :

Product Name: Right angle 4 pogo pin contacts power connector C714

Part Number: HTP-CON-C714

- Materials and plating:

  The syringe is made of brass alloy C3604, nickel plated 80-120μ"" gold plated 3μ.

  The needle is made of brass alloy C2700, nickel plated 80-120μ"" gold plated 3μ.

- Plastic is PA46, high temperature resistance

- The spring is stainless steel SUS304.

- Continuous working current: 2.0A - Working voltage: less than 12V@25°C

- Service life: less than 10000 times

- Durability: 10,000 spring forces are kept within range.

- Positive force: working point 80-100g

- Salt spray test 5% salt solution was rust-free for 72 hours.

- Solderability test 230±5°C±1Seconds wet solder coverage is over 95%.

- Widely used in Mobile, Communications, Chargers,Sports bracelet,GPS tracker,Smart watch,Beauty instrument,Medical device,Unmanned aerial vehicle and etc.

- HytePro supports OEM&ODM,we could custom make the pitch,pogo pin length and every details you want.HytePro magnetic connectors
