2019-09-28 10:28:28   2789

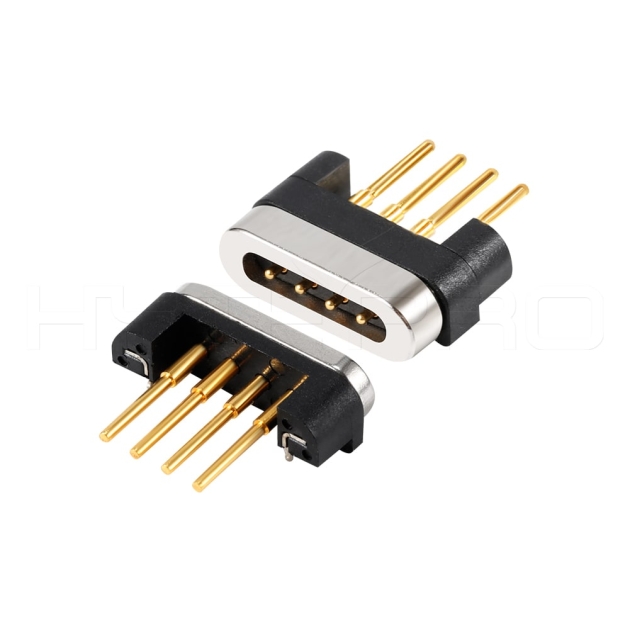

Product Name: Straight 4 pin magnetic data connector, Product ID: HTP-CON-M411H, Straight pogo pin design, Magnetic tensile force about 600g, stably working, high quality magnetic connectors

  • Trademark : HytePro®
  • Part Number : HTP-CON-M411H
  • PIN : 4
  • Magnetic Force : ≥600gf
  • Rated current : 2A
  • Customizable : Yes
  • Plastic Housing : PA66+30% GF
  • Magnet : NdFeB
  • Spring : Stainless steel SUS304/SWP
  • Needle : Brass C2700 / C3604
  • Gold plated : 3~30μ
  • Insulation resistance : 100MΩ at 100VDC
  • Contact impedance : Dynamics≤30MΩ
  • Operating temperature : -40℃~+85℃
  • RoHS : Compatible
  • :

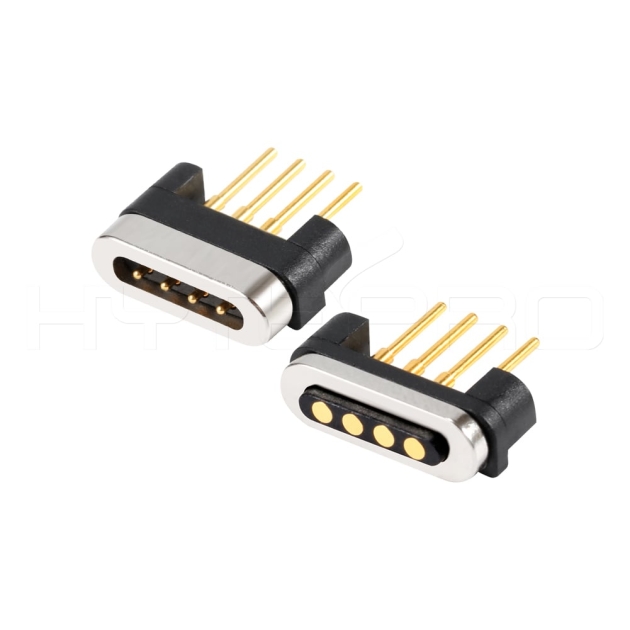

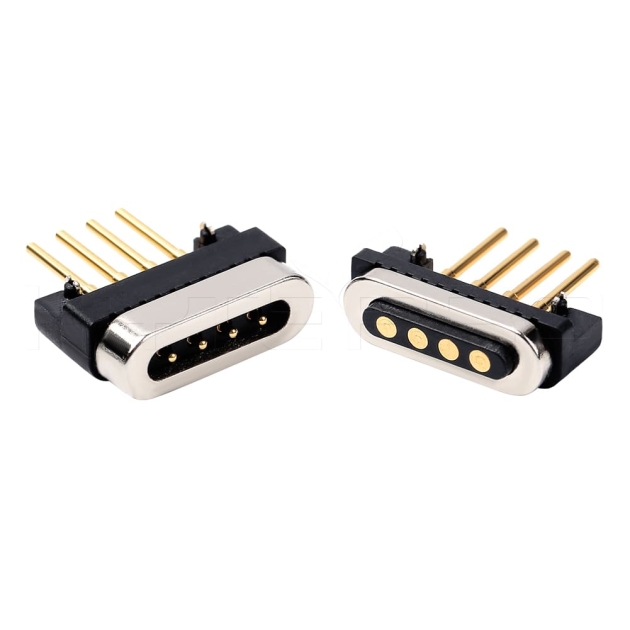

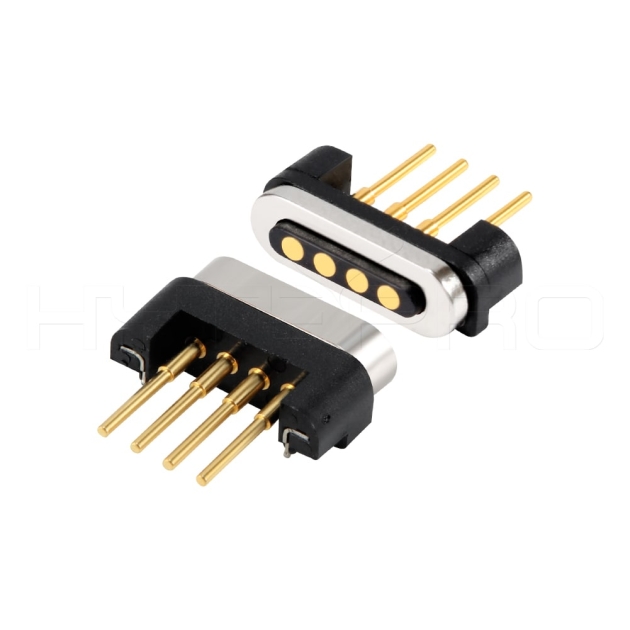

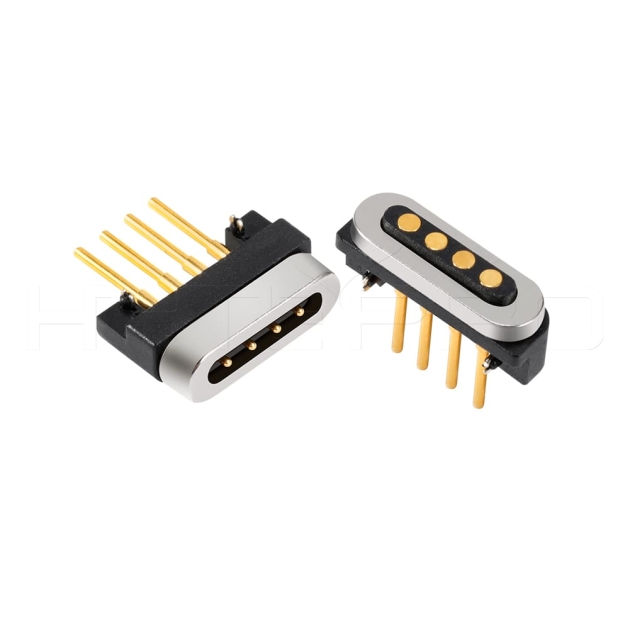

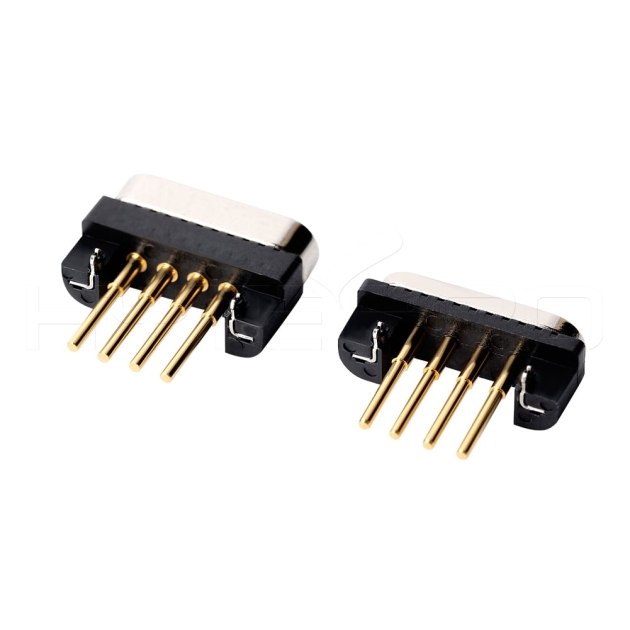

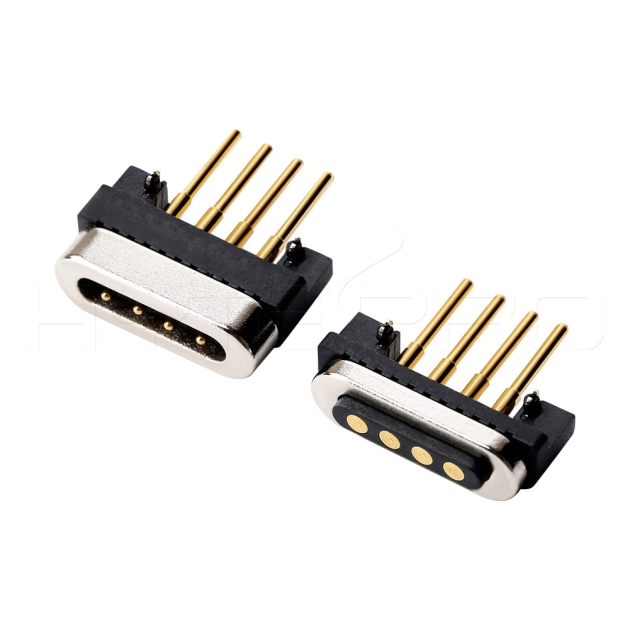

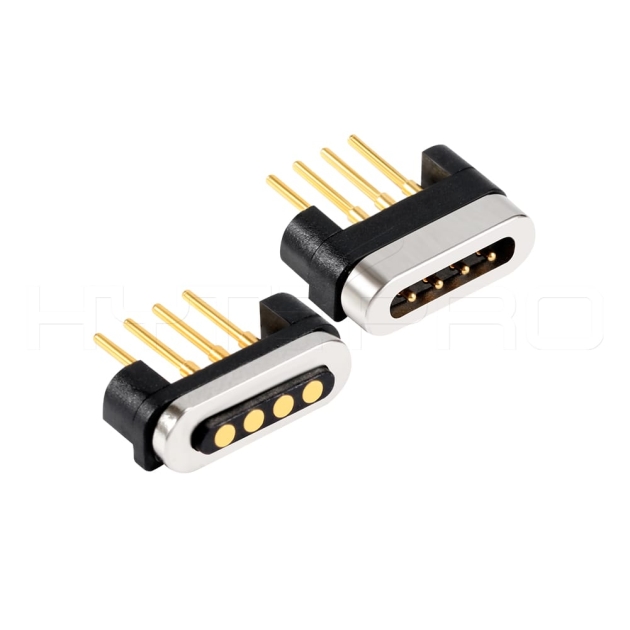

Product Name: Straight 4 pogo pin magnetic data connector M411H

Part Number: HTP-CON-M411H

- Straight pogo pin design;

- Magnetic tensile force about 600g, stably working;

- Pogo pin and stainless steel fixed column structure;

- PA66+30% GF Plastic body design and support 5V/2A;

- For data Sync and charging with anti-misplugging design;

- The contact pins is 5μ gold plated and magnets is nickel-plated;

- Could be connected with pcb board and wire/assembly with USB cable terminal end and wire specification you want;

- Application: Sports bracelet,GPS tracker,Smart watch,Beauty instrument,Medical device,Unmanned aerial vehicle and etc.

HytePro magnetic cables

HytePro magnetic cables

HytePro magnetic cables

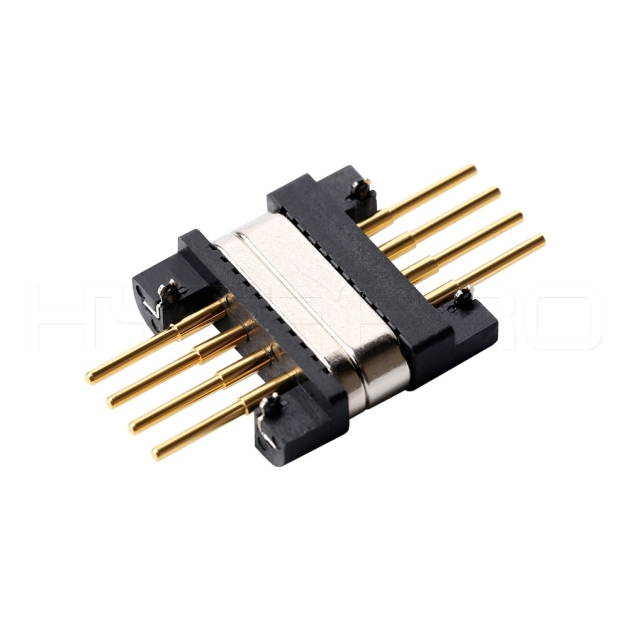

Self mating mount

HytePro self-mating mount magnetic connector attracted by the magnetic force and actually slides into the socket automatically when the plug approaches the socket. This makes it efficient and comfortable to handle and ensure proper connection.

Auto break-away function

The auto break-away function is designed to disconnect when the plug or cable is subjected to a sharp pull (intentional or unintentional). This avoids the risk of injury to the user and damage to the connector. Deliberate removal of the plug is quick and easy due to the disconnect function.

Stable, fast, reliable, simple

HytePro magnetic self-matching connectors automatically detect connections and prevent tearing. They are ideal for connections that require more frequent connections and disconnections.

Powerful Magnetic Connector

HytePro has developed the powerful magnetic connector that offers an intelligent alternative to mechanical mating. HytePro self-mating magnetic connector provides all common functions and is suitable for power and data sync.
