2021-10-13 17:55:22   5167

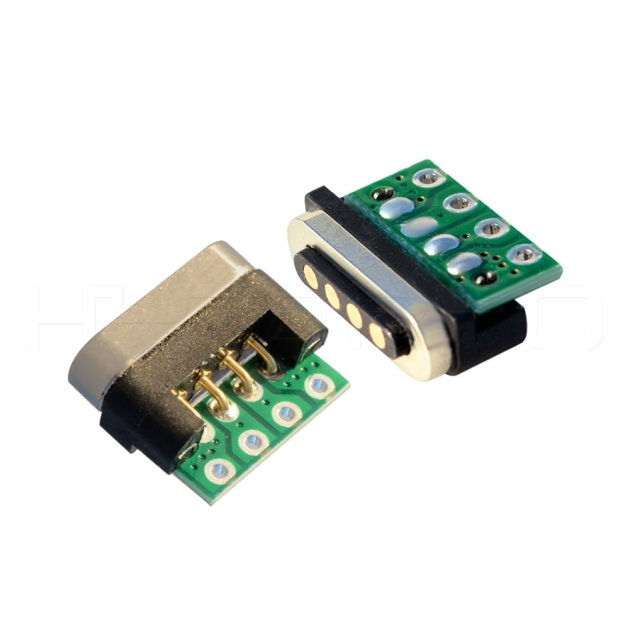

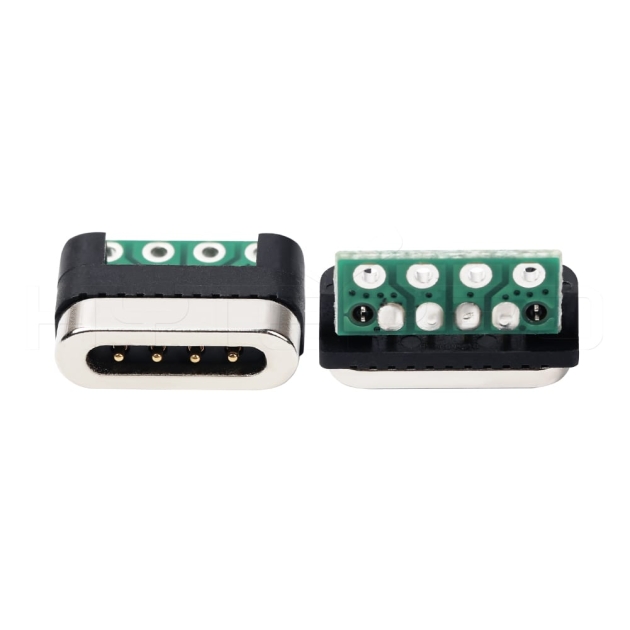

Exclusive design Reverse 4 pin male and female magnetic connector, anti-reverse design, Data transfer and power charging

  • Trademark : HytePro®
  • Part Number : HTP-CON-M417R
  • Mounting Type : Through Hole
  • Private Mold : Yes
  • Number of Pins : 4
  • Magnetic Force : ≥600gf
  • Voltage Rating : 5~24 VDC
  • Current Rating : 2A
  • Plastic Housing : PA66+30% GF
  • Magnet : NdFeB
  • Spring : Stainless steel SUS304/SWP
  • Needle : Brass C2700 / C3604
  • Insulation Resistance : 100MΩ at 100VDC
  • Gold Plated : 3~30μ
  • Operating Temperature : -40°C ~ 85°C
  • Contact Impedance : Dynamics≤30MΩ
  • RoHS : Compliant
  • Customizable : Yes
  • Package : Tube,Carton box
  • Usage : Industrial Automation,Aerospace,Drones and Robots,Medicine and Healthcare,Consumer Electronics
X
Samples Request? Get quotation list?
We will reply to you within 30 minutes
Product Name:Reverse 4 pogo pin male and female magnetic connectors M417R

Product Name: Reverse 4 pogo pin male and female magnetic connectors M417R

Part Number: HTP-CON-M417R



- Magnetic tensile force up to 650gf;

- Exclusive design magnetic PCB connector;

- Charging with 5V/2A and anti-reverse design;

- Data transfer and power charging, designing magnets pole for anti-reverse;

- Widely used in smart wearable devices, storage devices, electronic devices, medical devices, etc;

- Pogo pin design and HTN plastic body structure, round magnets design make better experience.

Reverse 4 pogo pin male and female magnetic connectors M417RReverse 4 pogo pin male and female magnetic connectors M417RReverse 4 pogo pin male and female magnetic connectors M417RReverse 4 pogo pin male and female magnetic connectors M417RReverse 4 pogo pin male and female magnetic connectors M417RReverse 4 pogo pin male and female magnetic connectors M417R
