2021-10-19 17:09:33   3747

Panel mount magnetic 2pin pogo connectors M402, For data Sync and charging with anti-misplugging design, Small and ultra thin design for save mount space.

  • Trademark : HytePro®
  • Part Number : HTP-CON-M402
  • Mounting Type : Through Hole
  • Private Mold : Yes
  • Number of Pins : 2pin
  • Magnetic Force : ≥300gf
  • Voltage Rating : 5~24 VDC
  • Current Rating : 2A
  • Plastic Housing : PA66+30% GF
  • Magnet : NdFeB
  • Spring : Stainless steel SUS304/SWP
  • Needle : Brass C2700 / C3604
  • Insulation Resistance : 100MΩ at 100VDC
  • Gold Plated : 3~30μ
  • Operating Temperature : -40°C ~ 85°C
  • Contact Impedance : Dynamics≤30MΩ
  • RoHS : Compliant
  • Customizable : Yes
  • Package : Poly bag,Carton box
  • Usage : Industrial Automation,Aerospace,Drones and Robots,Medicine and Healthcare,Consumer Electronics
X
Samples Request? Get quotation list?
We will reply to you within 30 minutes

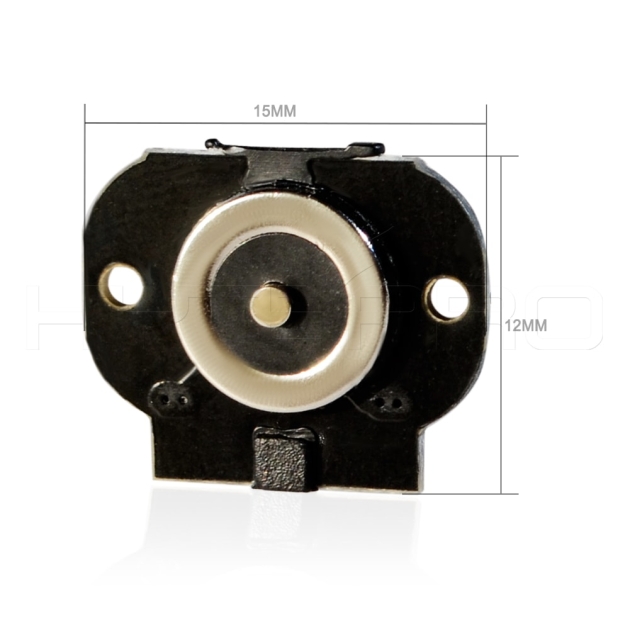

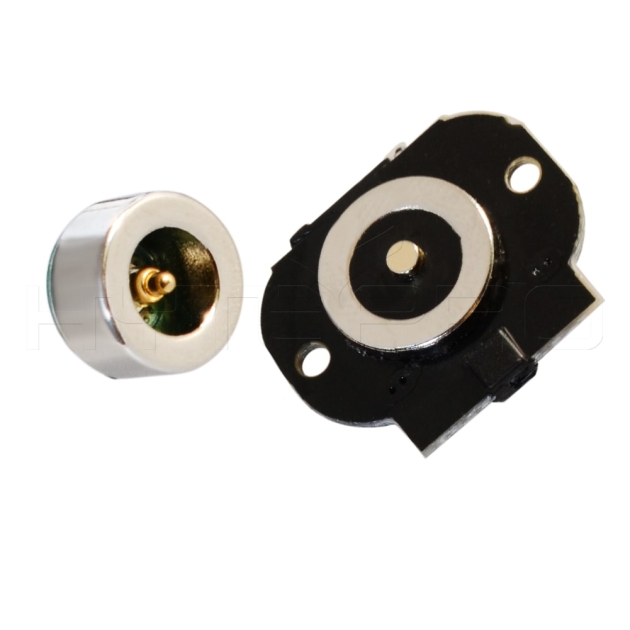

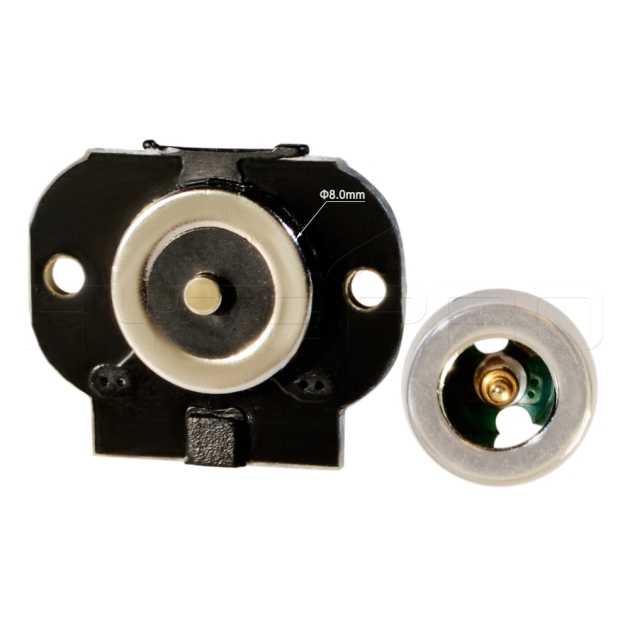

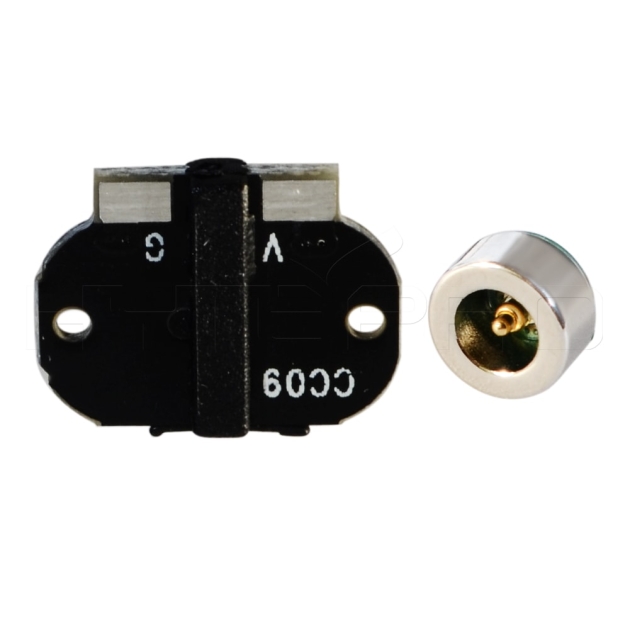

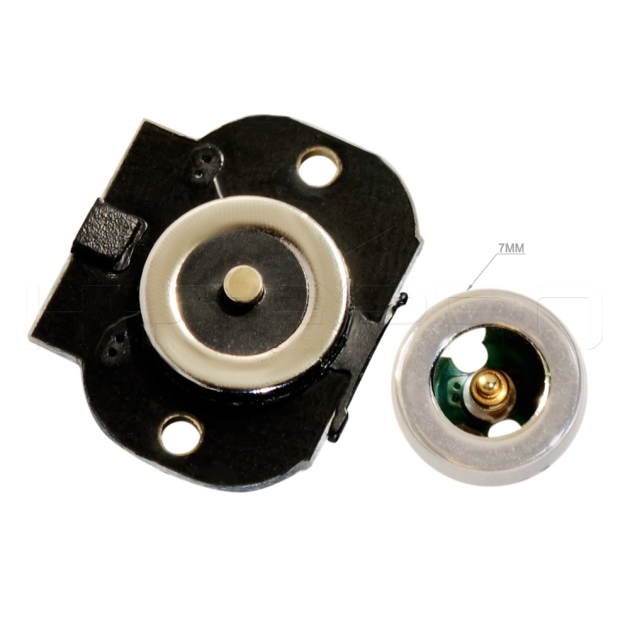

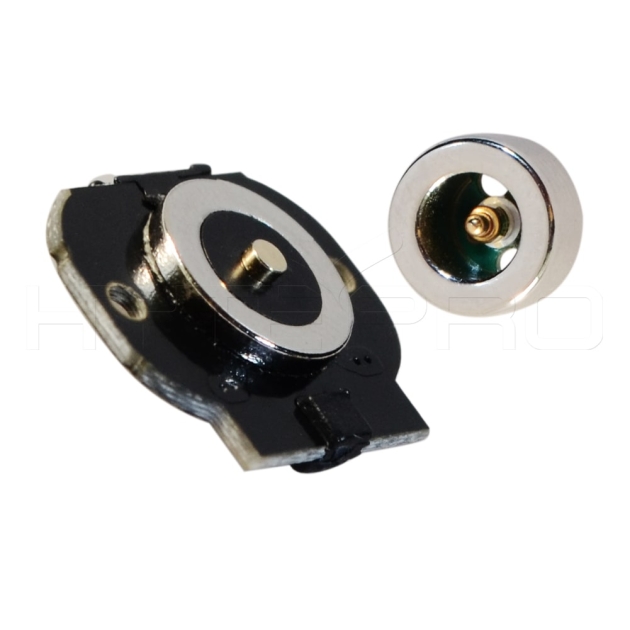

Product Name:Panel mount magnetic 2pin pogo connectors M402

Product Name: Panel mount magnetic 2pin pogo connectors M402

Part Number: HTP-CON-M402

- For power charging with anti-misplugging design.

- Small and ultra thin design for save mount space.

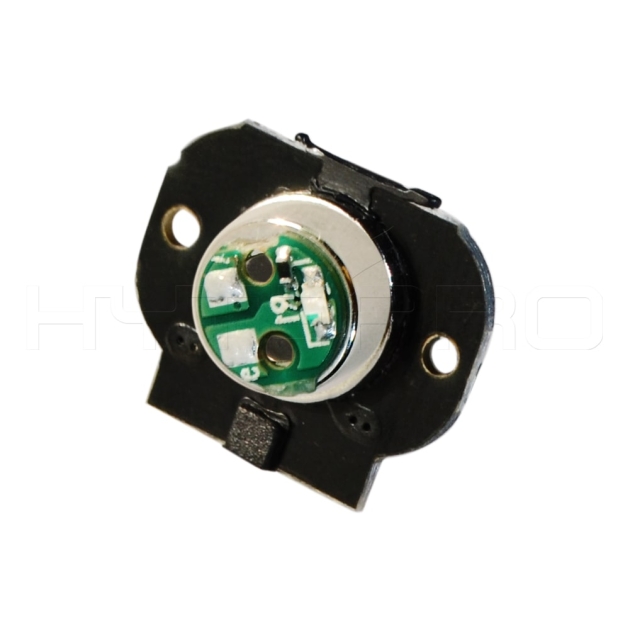

- With a PCB for panel mount.

- Magnetic tensile force beyond 300g, stably working.

- The contact pins is 5-30μ gold plated and magnets is nickel-plated.

HytePro magnetic connectors are more convenient, requiring no precise alignment, the male and female part will be automatically connected by magnetic adsorption, effectively prevent mis-plugging.

HytePro fast charging magnetic cable features a pair of male and female magnetic connector that helps guide the plug to the power and data port of your devices.

The pogo pin contacts are gold plated, NdFeB magnet nickel plated, can load more higher currents, keep more stable connection,  to achieve fast charging and data transfer capabilities.

HytePro magnetic connection is strong enough to resist most unintended disconnects, ensure more stable electrical connectivity, but if someone trips on the cable, it will disconnect to stay safe of your devices.

HytePro magnetic connectors are widely application, such as industrial automation, aerospace, drones and robots, medicine and healthcare, sports bracelet, GPS tracker, smart watch, beauty instrument and etc.
